Custom & Special Design FFU FAQs: When Should You Consider Customizing an FFU?
For the vast majority of standard ISO 6 to 8 cleanrooms, off-the-shelf 4x4 (1175x1175mm) or 2x4 (1175x575mm) Fan Filter Units (FFUs) work perfectly. They drop easily into standard ceiling grids and operate smoothly.
However, modern high-tech manufacturing is pushing the limits of physical space and environmental control. When standard equipment fails to meet your exact specifications, forcing an "off-the-shelf" product into a complex project leads to compromised airflow, safety hazards, and wasted OPEX.
As a leading manufacturer with full-chain R&D capabilities, DSX Purification specializes in transforming unique challenges into tailored airflow solutions. Here are the four primary scenarios where a custom FFU is not just an option—it is an absolute necessity.
Scenario 1: Extreme Space Constraints & Equipment Integration
Standard FFUs are bulky, typically requiring 300mm to 450mm of ceiling plenum space. But what if you are designing a micro-environment?
Equipment-Level Cleanliness: Manufacturers of SMT Pick & Place machines, Semiconductor EFEMs (Equipment Front End Modules), or OHT storage tracks need to build an ISO Class 3 or 5 environment inside the machine.
The DSX Solution: We engineer Ultra-Thin Custom EFUs (Equipment Fan Units) with housing profiles as low as 70mm. We customize the exact dimensions, shapes (L-shaped, circular, or notched), and exhaust routing to seamlessly integrate into your equipment’s confined chassis without disrupting existing robotic movements.
Scenario 2: Aggressive or High-Dust Manufacturing Environments
Standard FFUs are designed for relatively clean intake air. They will quickly choke, fail, or cause catastrophic contamination in extreme industrial environments.
Lithium-Ion Battery & Heavy Dust Applications: Processes like battery electrode coating, powder mixing, or CNC machining generate massive amounts of heavy metallic dust. A standard FFU will be destroyed by this abrasive particulate load.
Advanced Semiconductor Fabs: Standard fiberglass filters can shed boron, destroying sensitive wafers during lithography processes.
The DSX Solution: We offer complete material and structural customization. For heavy-dust environments, we engineer Custom High-Protection FFUs specifically designed to withstand and operate flawlessly amidst extreme metallic particulate intrusion, ensuring long-term reliability. For semiconductors, we provide Boron-Free PTFE filters and chemical AMC (Airborne Molecular Contaminant) filtration, building the FFU to survive and protect your specific process.
Scenario 3: Global Voltage Compliance & OEM Export Requirements
If you are an EPC contractor or equipment manufacturer exporting globally, electrical compatibility is a major hurdle.
The Challenge: A standard 220V/50Hz motor will not perform optimally or safely in a facility wired for North American (110V/277V/60Hz) or Japanese (100V/60Hz) standards.
The DSX Solution: Because we manufacture our own EC and AC motors in-house, we can rewind and configure the motors and control boards to meet any custom voltage and frequency requirements. We ensure your custom FFUs are fully compliant with CE, UL, or local electrical standards, making global deployment seamless.
Scenario 4: Complex Smart Integration & Automation
Modern Gigafactories do not operate FFUs via manual switches; they require deep integration into central Building Management Systems (BMS).
The Challenge: Off-the-shelf control boards often have closed software architecture, making them incompatible with your facility’s specific IT protocols.
The DSX Solution: DSX hardware and software engineers work directly with your IT integrators. We customize the firmware, providing tailored Modbus RTU, Modbus TCP/IP, or BACnet interfaces. We can even customize the physical connection ports (e.g., aviation plugs, specific terminal blocks) for faster on-site wiring.

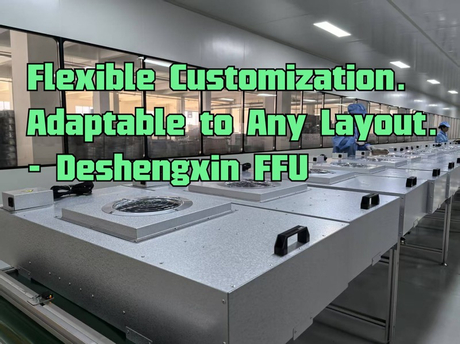

From Concept to Installation: The DSX Customization Process
At DSX Purification, "Custom" does not mean slow or unreliable. Because we own the entire supply chain—from sheet metal laser cutting to motor winding and filter potting—we offer rapid prototyping and scalable OEM manufacturing.
Consultation & 3D Design: Our engineers evaluate your constraints and provide customized 3D CAD models.
Rapid Prototyping (Sampling): We build a functional prototype for your field testing and aerodynamic validation.
Mass Production: Once approved, our 30,000 sqm facility guarantees swift, high-volume production with zero third-party delays.
Do you have a unique cleanroom challenge that standard products can't solve?
[ Submit Your Specifications Today for a Free Expert Engineering Consultation & Custom Prototype Quote ]
