FFU Control System & Integration FAQs: What Are the Main Architectures of FFU Control Systems?

When designing a modern cleanroom, one of the greatest challenges for facility engineers is determining how to efficiently and reliably manage hundreds or thousands of Fan Filter Units (FFUs) suspended in the ceiling grid. A flawed control system or network latency can directly lead to contamination risks and massive energy waste.

Based on different facility scales and process requirements, DSX Purification has categorized the current FFU control systems into three mainstream architectures. Discover how our smart integration solutions can empower your next cleanroom project.

1. Decentralized Local Control Architecture

Application Scenarios: Clean booths, localized cleanroom upgrades, and small-scale laboratories.
Architecture Overview: This is the most fundamental control method. Each FFU is equipped with an independent speed controller (either a 3-step switch or a stepless knob), or a small multi-control switchbox is hardwired to manage the startup, shutdown, and air velocity of 1 to 5 FFUs locally.

• The DSX Advantage: Even for basic architectures, DSX provides highly reliable digital local control panels. Moving away from traditional "blind-tuning" knobs, our panels feature an LCD screen that precisely displays current speed levels and motor fault alarms, ensuring accurate manual adjustments.

2. RS485/Modbus Master-Slave Group Control Architecture

Application Scenarios: Mid-sized electronics factories, precision manufacturing workshops, and medical device packaging areas (handling dozens to hundreds of nodes).

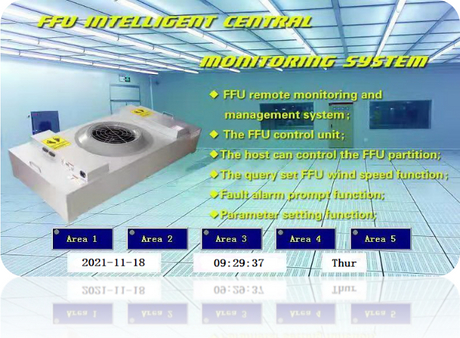

Architecture Overview: This system utilizes a standard RS485 physical bus running the Modbus RTU communication protocol. The ceiling-mounted FFUs are daisy-chained together and connected to a ground-level HMI (Human-Machine Interface) Touch Screen Gateway.

• The DSX Smart Control Advantage:

  1. Robust Network Capacity: Driven by DSX’s proprietary gateways, a single bus line can stably support 128 to 256 FFUs with zero signal latency.

  2. Zonal Logic Control: Engineers can divide the cleanroom into virtual zones on the touch screen (e.g., Zone A at full load, Zone B in energy-saving standby mode), drastically reducing HVAC OPEX.

  3. One-Click Addressing & Fault Location: If an FFU motor overloads or a HEPA filter clogs, the DSX screen instantly triggers a red alert displaying the exact coordinate code (e.g., Group 03 - Node 12), drastically reducing troubleshooting time for maintenance teams.

3. Facility-Wide BMS / SCADA Deep Integration Architecture

Application Scenarios: Semiconductor fabs, Lithium-ion Gigafactories, and massive biopharmaceutical bases (handling thousands to tens of thousands of nodes).
Architecture Overview: This represents the highest level of cleanroom automation. FFUs are no longer restricted to a localized touchscreen. Through high-level gateways (supporting Modbus TCP/IP or BACnet) or dedicated PLC cabinets, raw operational data is fully exposed and integrated into the facility's central Building Management System (BMS) or SCADA system.

• The DSX System Integration Advantage:
  DSX is not merely an equipment manufacturer; we are a hardware-software integrated solutions provider.

  • Fully Open Underlying Protocols: We provide EPCs and IT integrators with comprehensive API interface standards and register mapping tables, ensuring seamless plug-and-play integration with mainstream systems like Siemens, Schneider, and Johnson Controls.

  • Visual Mapping & Dynamic Monitoring: DSX's proprietary PC-based monitoring software allows users to import facility CAD layouts. Tens of thousands of FFUs are visualized as dynamic icons on the screen—green for normal operation, red for alarms—achieving true "God-mode" visual maintenance.

  • Energy-Saving Algorithm Linkage: The DSX FFU network can interact with differential pressure sensors and particle counters in the cleanroom. When airborne particles are below thresholds, our EC motors automatically reduce RPMs; when a door opens and pressure drops, they instantly accelerate to compensate.

Why Do System Integrators Prefer DSX Purification?

Many FFU assemblers in the market purchase their control boards from third-party vendors. When network storms or protocol incompatibility issues arise during massive integration projects, they lack the capability to modify the underlying code.
In contrast, DSX boasts 100% in-house R&D and manufacturing of our FFU control boards and communication gateways. This absolute sovereignty means we can offer deep customization—from low-level communication protocols to top-level UI interfaces—eliminating the "black box" risks of system integration.
