Shelved Fire Safety Cabinet

The DSX shelved fire safety cabinet features double-layer steel construction with 100mm fireproof insulation, offering customizable storage configurations with explosion-proof mechanical ventilation and VOC filtration. Designed for hazardous chemical storage, it includes temperature control systems, gas detection, and fire suppression systems, complying with international safety standards GB/T 3274-2007 and featuring 90/240-minute fire resistance ratings.

Quantity:
Availability:





Inquire Add to Basket

Model:
Customization
Brand:
DSX
Customized support:
OEM, ODM
Warranty:
1 Year
Certification:
ISO9001

Shelved fire safety cabinet Chemical Storage Cabinet explosion-proof cabinet Flammable Storage Cabinet laboratory safety cabinet hazardous material storage Industrial Safety Cabinet VOC filtration cabinet fireproof chemical cabinet OSHA safety storage

Product Display

Workshop Introduction

FAQ

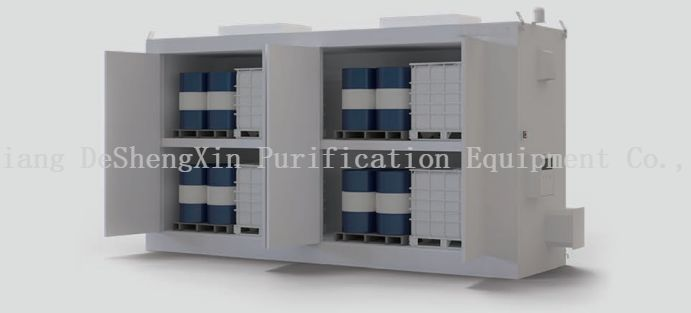

Shelved Fire Safety Cabinet

The shelving structure can be customized with different heights, widths, and depths, offering strong adaptability and adjustable configurations based on spatial requirements. This flexibility makes it suitable for venues that require frequent adjustments to storage space, improving storage efficiency and space utilization—such as in laboratories and small warehouses. The open design of the shelving system makes it easier to organize and locate items, providing open visual and physical access. This enables quick identification and retrieval of required chemicals, enhancing workflow efficiency and reducing operation time.

Shelved Fire Safety Cabinet

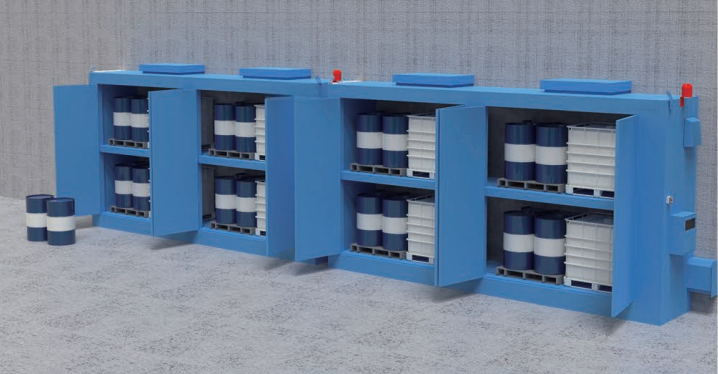

Series Applications

Industrial Sector

Chemical Plants: Used for storing various types of flammable and explosive chemicals, such as solvents, coatings, resins, etc.
Oil and Gas Industry: Storage of flammable substances like liquefied gas, petroleum, natural gas, etc.
Pharmaceutical Companies: Storage of hazardous chemical raw materials and pharmaceutical intermediates.
Electronics Manufacturing: Storage of flammable cleaning agents, flux, etc.

Research Institutions

University laboratories, chemical laboratories, research centers, etc., for storing hazardous chemicals and experimental reagents.

Public Places

Airports and Ports: Specially stored hazardous materials, such as fuels, flammable and explosive chemicals for maintenance, etc.
Healthcare Facilities: Involves the storage and use of large quantities of pharmaceuticals, chemicals, and other hazardous materials.

Warehousing and Logistics

Dangerous Goods Warehouses: Centralized storage and management of various types of hazardous materials.
Logistics Distribution Centers: Temporary storage of dangerous goods during transportation to ensure safety.

Municipal Facilities

Locations such as sewage treatment plants and waste disposal stations, where hazardous chemical agents are stored.

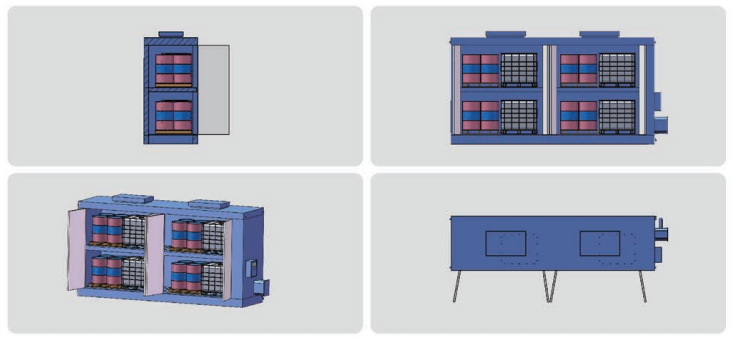

Shelved Fire Safety Cabinet Detailed Diagram

Cabinet Configuration:


1. Explosion-Proof Mechanical Ventilation + VOC Filtration	6. Suspended Fire Suppression System	11. Explosion-Proof Sound & Light Alarm System
2. Electrical Control Box	7. Explosion-Proof Lighting System	12. Explosion-Proof Monitoring System
3. Door-Closing Control System	8. Combustible Gas Detector	13. Grounding Device
4. Explosion-Proof Temperature Control System	9. Toxic Gas Detector	14. Pressure Relief System
5. Explosion-Proof Temperature & Smoke Detection System	10. VOC Gas Detector	15. Anti-Static Discharge System

Product Features

Structural Features	Safety Features
Double-Layer Steel Structure: Inner and outer steel layers welded together, unpainted and rust-free, surface preparation to Sa 2.5 grade	Fireproof Material: 100mm thick fireproof insulation applied to walls, ceiling and structural components
Wall Structure: Internal square tube profiles ≥3mm, external bent steel plates ≥3mm, concrete-filled welding connections, compliant with GB/T 3274-2007	Fire Resistance & Coating: 90-minute fire rating for external surfaces, anti-corrosion coating on both surfaces
Base Design: 5mm thick sealed steel spill containment sump with 3mm hot-dip galvanized anti-corrosion surface	Pressure Relief System: Automatic pressure relief valves, explosion-vent panels, fire-activated pressure release mechanism
Lifting Design: Integrated lifting lugs for crane and forklift handling, rated for full load capacity	Spray Treatment: Surface sandblasting to Sa 2.5 standard, multi-layer anti-corrosion primer, high-temperature resistant top coating
Additional Features: Secondary containment system, chemical-resistant seals, emergency ventilation ports

Product Specifications

Product Name	Model	External Dimensions	Internal Dimensions	Capacity	Weight	Fire Rating

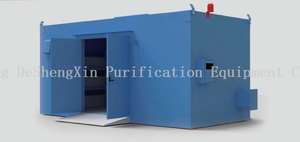

Walk-in Fire Storage Cabinet	LS-W4000D	4000×2600×2950mm	3780×2680×2615mm	10m³/1440L	3800kg	F90/F240
Walk-in Fire Storage Cabinet	LS-W6000D	6000×2500×2950mm	5780×2680×2615mm	15m³/2200L	4300kg	F90/F240
Walk-in Fire Storage Cabinet	LS-W8000D	8000×2600×2950mm	7780×2680×2615mm	21m³/3000L	5500kg	F90/F240
Shelved Fire Storage Cabinet	LS-R3420D	3420×1780×3520mm	2920×1400×2950mm	16 drums	3800kg	F90/F240
Shelved Fire Storage Cabinet	LS-R6620D	6620×1780×3520mm	6120×1400×2950mm	32 drums	5600kg	F90/F240
Shelved Fire Storage Cabinet	LS-R9880D	9880×1780×3520mm	9380×1400×2950mm	48 drums	8200kg	F90/F240

Note: All dimensions in millimeters. Fire ratings F90/F240 indicate 90-minute and 240-minute fire resistance durations. Drum capacity based on 200L standard containers.

Workshop Introduction

Frequently Asked Questions (FAQ)

Product Specifications

Question	Answer
What is the fire resistance rating of your shelved safety cabinets?	Our cabinets offer F90 (90-minute) and F240 (240-minute) fire resistance options.
What is the construction material thickness?	Internal and external steel components use ≥3mm thick materials.
What is the capacity of the largest model?	The LS-R9880D stores 48 standard 200L drums.
What types of chemicals can be stored in these cabinets?	They are designed for flammable liquids, combustible materials, and hazardous chemicals.

Safety Features

Question	Answer
Does the cabinet include gas detection systems?	Yes, we provide combustible gas, toxic gas, and VOC detectors.
What ventilation systems are included?	Explosion-proof mechanical ventilation with VOC filtration is standard.
What safety features are included?	Includes fire suppression, pressure relief, and anti-static systems.
What electrical certifications do the components have?	All electrical components are explosion-proof certified.

Customization & Configuration

Question	Answer
Can the shelving be adjusted for different container sizes?	Yes, the shelving structure is fully customizable with adjustable heights and depths.
Do you offer custom size options?	Yes, we provide custom dimensions for height, width, and depth.
Can the cabinets be used outdoors?	Yes, with proper weather protection and installation considerations.

Installation & Maintenance

Question	Answer
How are the cabinets transported?	They feature integrated lifting lugs for crane and forklift handling.
Do you provide installation services?	Yes, we offer professional installation and commissioning services.
What maintenance is required?	Regular inspection of safety systems and annual certification checks.
Are spare parts available?	Yes, we maintain a complete inventory of spare parts.

Certification & Compliance

Question	Answer
Are these cabinets compliant with international standards?	Yes, they meet GB/T 3274-2007 and other international safety standards.
What surface treatment is used?	Sandblasting to Sa 2.5 standard with anti-corrosion coating.

Ordering & Service

Question	Answer
What is the lead time for custom orders?	Typically 4-6 weeks depending on specifications.
Do you provide safety training?	Yes, we offer comprehensive safety operation training.
What warranty do you offer?	We provide 1-year warranty on all components.

Note: All FAQs are categorized for easy reference. For additional questions, please contact our technical support team.
