Preliminary Panel Frame Filter

Deshengxin Preliminary Panel Frame Filter, a versatile and robust filtration solution designed for commercial and industrial HVAC and ventilation systems. Crafted with a high-humidity-resistant frame made of galvanized steel plate or aluminum alloy, and featuring a blend of cotton and synthetic fiber media, this filter offers superior filtration efficiency while maintaining low resistance and high airflow. With a pleated design that increases the effective filtration area, the Deshengxin Preliminary Panel Frame Filter boasts a large dust holding capacity, ensuring long-lasting performance. The filter is also customizable, allowing for tailored specifications to meet the unique needs of each application. Ideal for use as a pre-filter in commercial and industrial HVAC and ventilation systems, the Deshengxin Preliminary Panel Frame Filter is your go-to solution for cleaner, healthier indoor air environments.

Quantity:
Availability:





Inquire Add to Basket

Model:
Customization
Brand:
DSX
Size:
OEM, ODM
Customized support:
OEM, ODM
Certification:
CCC/CE/ISO9001

Preliminary Panel Frame Filter High-Humidity Resistant Galvanized Steel Plate Aluminum Alloy Frame Cotton & Synthetic Fiber Media Spray-Coated Steel Mesh Filtration efficiency Low Resistance High Airflow Pre-filter

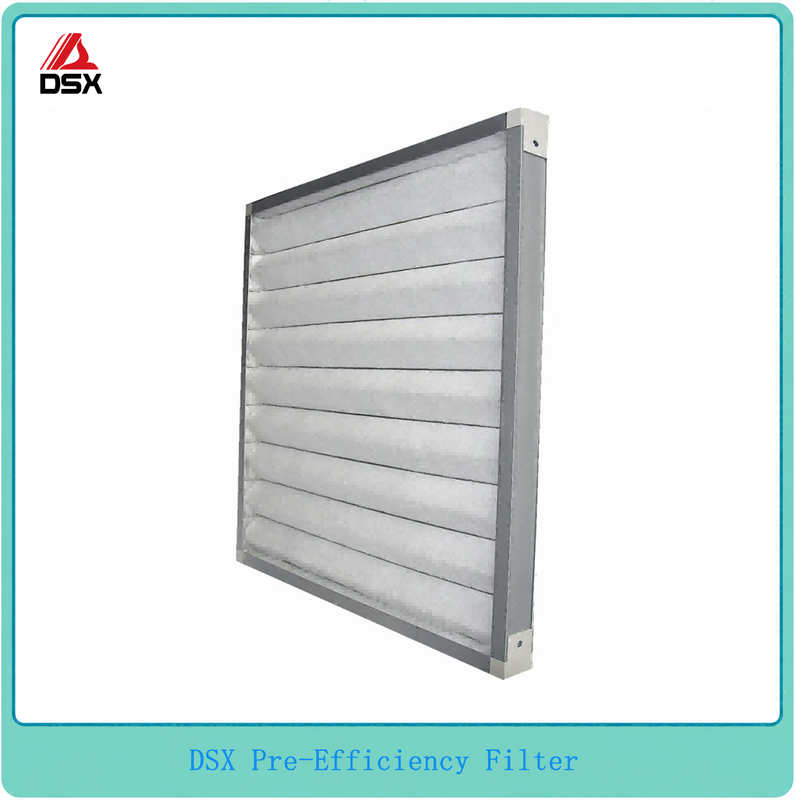

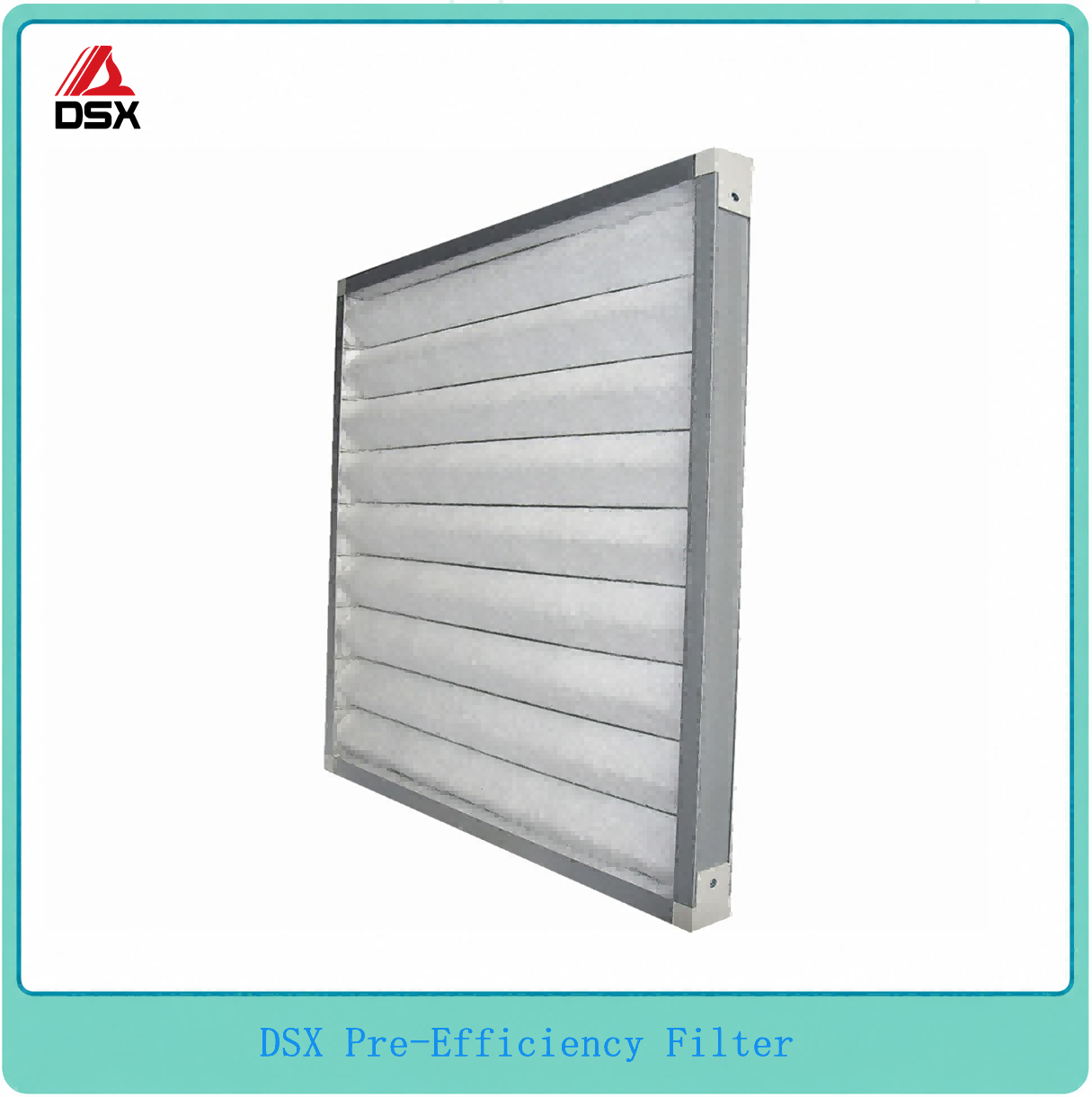

Product Display

Workshop Introduction

Product Introduction: Deshengxin Preliminary Panel Frame Filter

Deshengxin proudly presents its Preliminary Panel Frame Filter, a robust and versatile filtration solution designed for commercial and industrial ventilation and HVAC systems.

Preliminary Panel Frame Filter (1)

Preliminary Panel Frame Filter (3)

Preliminary Panel Frame Filter (2)

Performance Specifications:

Frame: Made of high-humidity-resistant waterproof cardboard, galvanized steel plate, or aluminum alloy (surface oxidized), available in thicknesses of 46mm, 25mm, 20mm, 15mm, and 10mm.
Filter Media: A blend of cotton and synthetic fiber non-woven material or synthetic fiber, ensuring efficient filtration.
Protective Mesh (Optional): Spray-coated steel mesh or aluminum alloy mesh for added durability.
Filtration Efficiency: Average weighted efficiency of 80% and 90-95%, with >95% efficiency at ≥5µm.
Humidity Resistance: Capable of withstanding ≤100%RH.
Continuous Operating Temperature: ≤70°C.
Recommended Maximum Terminal Resistance: ≤250Pa.

Product Features:

Reusable and Washable: The filter can be cleaned and reused multiple times, reducing operational costs.
Higher Efficiency than Nylon Mesh: Offers superior filtration efficiency compared to nylon mesh pre-filters.
Low Resistance, High Airflow, and Large Dust Holding Capacity: Designed for minimal air resistance, high airflow, and substantial dust holding capacity.
Pleated Design: Increases the effective filtration area, enhancing overall performance.
Various Thicknesses: Available in thicknesses of 46mm, 50mm, 69mm, 96mm, and more to suit different applications.
Customizable: Can be tailored to meet specific customer requirements and specifications.

Applications:

The Deshengxin Preliminary Panel Frame Filter is ideal for use as a pre-filter in commercial and industrial ventilation and HVAC systems. Its high efficiency, durability, and customizable options make it a perfect choice for a wide range of applications, ensuring cleaner and healthier indoor air environments. Choose Deshengxin for reliable and efficient filtration solutions.
