Advanced Architectural Frameworks for Massive-Scale Cleanroom Control: The Deshengxin PC-Based Advantage
Introduction
In modern semiconductor fabs, OLED display lines, and biopharmaceutical plants, the physical scale of controlled environments has outpaced traditional automation. Managing an array of 50,000+ Fan Filter Units (FFUs) or Equipment Fan Filter Units (EFUs) requires more than simple logic—it demands a data-intensive central nervous system. Unlike standard PLC-centric models, Deshengxin (DSX) provides a self-developed PC-based integrated control system engineered for the world's most massive clusters.
Why PC-Based Control Outperforms Traditional PLC at Scale
For systems exceeding 1,000 units, traditional PLCs often hit a "data bottleneck" due to limited processing power and fixed scan cycles. Our PC-based architecture utilizes industrial-grade high-performance CPUs to handle complex analytics and real-time logging that PLCs simply cannot process.
Infinite Scalability: While PLCs are hardware-limited, our system manages tens of thousands of nodes through a hierarchical 3-level topology (RS-485 at the field layer and Modbus TCP/IP at the aggregation layer).
Event-Driven Execution: Critical alarms (e.g., a fan failure in a Class 1 lithography zone) are prioritized in milliseconds, ensuring zero-risk operations.
Unified Database: We eliminate the "multiple database trap," consolidating HMI, gateway, and control functions into a single, synchronized platform for 100% data integrity.

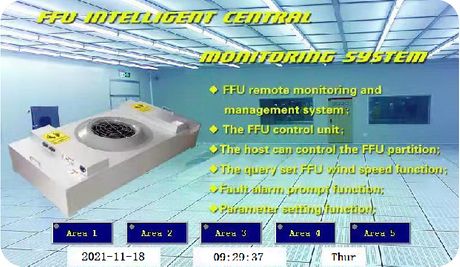

The World-First Visual Kanban Mode: A Visual Command Center
Managing 50,000 device statuses is impossible with text lists. Deshengxin pioneered the Visual Kanban Management Mode, a revolutionary paradigm shift that transforms massive technical data into an intuitive, actionable dashboard.
Digital Floor Plan Mapping: Your actual facility CAD layout is imported 1:1. Each FFU/EFU appears as a dynamic "tile" positioned exactly where it is in the ceiling.
Color-Coded Predictive Maintenance:
Green: Operating within optimal velocity range.
Yellow: Predictive alert—filter resistance has reached 80% (Order replacement HEPA filters now to avoid downtime).
Red: Critical failure or motor stall—instantly locate the physical unit on the map within seconds.
Real-Time Heatmapping: Visualize airflow velocity and pressure differentials across the entire facility to identify "dead zones" before they impact your yield.
Deep Customization & Multi-Language "Landing Language" Support
We understand that frontline operators require clarity in their native language. Because our control software is developed 100% in-house by our own auto-control engineers, we offer deeply customized multi-language user interfaces.
Custom Landing Languages: We adapt the terminal dictionary to your project’s local language (English, Arabic, French, German, etc.), ensuring zero linguistic barriers for your maintenance team.
Tailored Protocols: Whether your BMS (Building Management System) requires BACnet, Modbus TCP/IP, or proprietary IoT cloud protocols, we provide bespoke coding for seamless integration.
The Synergy of Vertical Integration: In-House Motors & Software
Deshengxin is the world's only provider offering 100% in-house production of motors and self-developed control software.This allows for Closed-Loop Impedance Matching:
Automatic Velocity Compensation:As our in-house HEPA filters load over time, the PC master controller automatically ramps up motor torque to maintain a constant 0.45m/s±5% airflow.
ROI-Driven Energy Savings: By implementing AI-driven "Night Mode" and personnel-tracking logic (which can reduce air supply volume by up to 53.6%), our systems slash annual electricity bills by up to 50%.
Upgrade your facility with the industry's most powerful(https://www.ffufan.com/ffu.html). Request a technical demo today.
