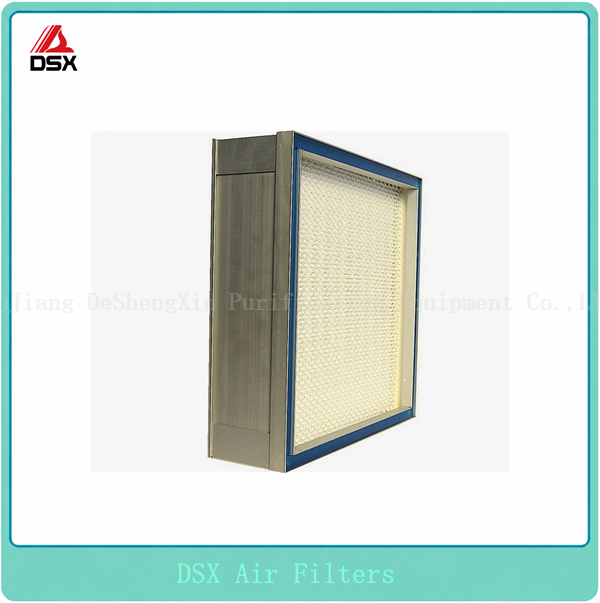

Liquid Tank HEPA Filter

The Deshengxin(DSX)Top Liquid Tank HEPA Filter is a high-performance terminal filtration solution featuring a unique liquid-tank sealing system with blue jelly glue that delivers superior leak-tightness compared to traditional gasket seals. Rated H14 efficiency (≥99.995% for 0.3μm particles), it offers high dust-holding capacity, low resistance, and extended service life. Constructed with an aluminium alloy frame, glass fibre media, and hot-melt glue separators, it operates reliably up to 80°C and 80% RH. Ideal for vertical laminar flow, Class 100 hoods, pharmaceutical cleanrooms, semiconductor fabs, and electronics manufacturing. Custom sizes and thicknesses available. Factory direct with 100% leak testing.

Quantity:
Availability:





Inquire Add to Basket

Model:
Customization
Brand:
DSX
Size:
570*570mm
Customized support:
OEM, ODM
Certification:
CCC/CE/ISO9001

Top Liquid Tank HEPA Filter H14 Jelly Seal Filter Deshengxin Cleanroom Filter Laminar Flow HEPA Filter Liquid Seal Terminal Filter hepa air filters hepa air filters Liquid Tank HEPA Filter hepa filter price

Product Display

Product Specifications

Workshop Introduction

FAQs

Deshengxin Top Liquid Tank HEPA Filter – Superior Sealing for Critical Clean Environments

1. Overview

The Deshengxin Top Liquid Tank HEPA Filter is an advanced terminal air filtration device engineered with a unique liquid-tank sealing structure that delivers significantly superior sealing performance compared to conventional gasket or pressure-seal designs. This filter is specifically developed for applications demanding the highest level of containment integrity – where even microscopic bypass leakage is unacceptable.

The liquid tank sealant, a blue jelly-like gel (commonly referred to as "jelly glue"), is non-volatile, non-oil-climbing, non-toxic, and odourless. It exhibits excellent stability at room temperature and maintains its sealing properties over extended periods without hardening or degrading. Each filter unit undergoes rigorous leak detection testing before leaving the factory, ensuring that every product delivered meets the most stringent quality and reliability standards.

By adopting this innovative sealing technology, the Deshengxin Top Liquid Tank HEPA Filter not only reduces the overall operational costs of cleanroom facilities but also satisfies the requirements of applications with elevated sealing standards, including pharmaceutical aseptic processing, semiconductor manufacturing, and biomedical research.

Top Liquid Tank HEPA Filter (2)

‌

2. Product Structure

Component	Specification
Frame Material	Aluminium alloy (lightweight, corrosion-resistant)
Frame Thickness (Top Liquid Tank)	95mm (standard specification)
Frame Thickness (Side Liquid Tank)	68 / 80 / 90 / 93mm (optional)
Filter Media	High-quality glass fibre filter paper (water-resistant, flame-retardant)
Separator	Hot-melt glue (ensures uniform pleat spacing)
Sealant (Perimeter)	Polyurethane glue (provides lasting perimeter seal)
Sealing Strip (Liquid Tank)	Blue jelly glue (non-volatile, non-toxic, stable at room temperature)
Efficiency Class	H14 (≥99.995% @ 0.3μm, MPPS)
Maximum Operating Temperature	80°C
Maximum Operating Humidity	80% RH

3. Key Features & Benefits

3.1 Superior Liquid-Tank Sealing Performance

The top liquid-tank design creates a continuous, form-fitting seal around the filter blade. The blue jelly glue fills the tank, completely enveloping the blade edge and eliminating any air bypass. This design outperforms traditional gasket seals, especially under variable pressure conditions, and provides long-term sealing stability without compression set.

3.2 High Filtration Efficiency (H14 Class)

Utilising premium glass fibre filter media, this filter achieves H14 efficiency – 99.995% to 99.999% removal of particles at 0.3μm (MPPS). It is ideally suited for ISO Class 5 (Class 100) and higher cleanroom environments where ultra-clean air is essential.

3.3 High Dust-Holding Capacity & Extended Service Life

The pleated media structure, maintained by precision hot-melt glue separators, maximises the effective filtration area. This results in significantly higher dust-holding capacity compared to standard filters, translating to longer service intervals and reduced replacement frequency – lowering total cost of ownership.

3.4 Low Resistance & Energy Efficiency

Despite its high efficiency, the filter maintains a low initial pressure drop, reducing the energy consumption of downstream fans or FFU systems. This is particularly beneficial in large-scale cleanroom installations where hundreds or thousands of filters operate continuously.

3.5 Lightweight & Easy Installation

The aluminium alloy frame is both lightweight and robust, simplifying handling and installation. The filter inserts directly into the top liquid tank with minimal effort, and the jelly glue automatically conforms to the blade, creating an instant airtight seal.

3.6 Reliable Quality Assurance

Every filter is 100% leak-tested using a particle counter scan method prior to shipment. This ensures that no pinhole leaks, media defects, or seal failures compromise the filter's performance.

4. Technical Specifications (Summary)

Parameter	Detail
Filter Class	H14 (EN 1822)
Efficiency (0.3μm)	≥99.995% (DEHS counting method)
Frame Material	Aluminium alloy
Separator	Hot-melt glue
Perimeter Sealant	Polyurethane
Tank Sealant	Blue jelly glue (non-volatile, non-toxic)
Max. Temp / Humidity	80°C / 80% RH
Frame Thickness (Top)	95mm (standard)
Frame Thickness (Side)	68 / 80 / 90 / 93mm (available)
Customisation	Dimensions, airflow, thickness available

5. Primary Applications

The Deshengxin Top Liquid Tank HEPA Filter is the preferred terminal filtration solution for a wide range of high-cleanliness industries and applications:

Large-Area Vertical Laminar Flow Systems – Provides uniform, ultra-clean air distribution across large work zones.
Class 100 Laminar Flow Hoods – Ensures ISO Class 5 cleanliness for critical manual assembly or processing.
Pharmaceutical & Biomedical Facilities – Aseptic filling lines, compounding pharmacies, research laboratories, and GMP cleanrooms.
Semiconductor & Electronics Manufacturing – Wafer fabrication, chip assembly, LCD and flat-panel display production, precision optics.
Precision Instrumentation – Assembly of medical devices, aerospace components, and high-precision mechanical systems.
Food & Beverage Processing – Hygienic air supply for packaging, filling, and production areas.
PCB Printing & Electronics Assembly – Contamination control for printed circuit board manufacturing.
Various Localised Purification Equipment – Modular clean booths, workstations, and portable clean enclosures.

6. Why Choose Deshengxin – Full-Chain Manufacturer Advantage

As a full-chain source manufacturer of FFUs, HEPA filters, and comprehensive cleanroom equipment, Deshengxin provides distinct competitive advantages:

Cost Leadership – Vertical integration eliminates intermediary costs, passing savings directly to customers.
Customisation Capability – Non-standard dimensions, frame thicknesses, and special sealing requirements can be accommodated with short lead times.
Quality Assurance – Every filter is individually tested and certified, with test reports available upon request.
Technical Support – Our experienced engineering team offers expert guidance on filter selection, system integration, and maintenance optimisation.
Global Track Record – Trusted by leading pharmaceutical, semiconductor, and electronics corporations worldwide.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between top liquid-tank and side liquid-tank sealing?
A: In top liquid-tank design, the filter blade inserts vertically into a liquid-filled trough located at the top of the filter. In side liquid-tank design, the blade inserts laterally. Top liquid-tank is typically preferred for vertical laminar flow systems where the filter drops in from above.

Q2: Is the jelly glue safe?
A: Yes. The blue jelly glue is non-toxic, non-volatile, non-oil-climbing, and odourless. It is stable at room temperature and poses no health or environmental hazards under normal operating conditions.

Q3: What is the recommended replacement interval?
A: Replacement is typically recommended when the pressure drop reaches 1.5 to 2 times the initial resistance, or in accordance with your cleanroom monitoring schedule. The high dust-holding capacity extends service life compared to standard filters.

Q4: Can this filter be used in high-humidity environments?
A: Yes. The filter is rated for up to 80% RH. For higher humidity requirements, please consult our technical team for custom treatments.

Q5: Do you offer custom sizes?
A: Absolutely. We manufacture filters to customer-specified dimensions, airflow capacities, and frame thicknesses. Contact us with your requirements for a tailored quotation.

Product Specifications

	Filter Material	Glass Fiber Filter or PTFE Ultra-Low Resistance Filter
	Frame	Aluminum Profile, Surface Oxidation Treatment
	Separator	Hot Melt Adhesive
	Filtration Efficiency	H13, H14, U15, U16, U17
	Operating Temperature	Maximum Operating Temperature 70C
	Rated Air Velocity	0.45 m/s
	Sealant	Polyurethane
	Sealing Gasket	EPDM, Liquid Tank Seal, Integrated PU Gasket
	Protective Mesh	Double-Sided Powder Coated Steel Mesh

Product features Relationship curve between initial resistance and face wind speed

Low resistance	Initial Resistance
Compact structure, lightweight
Can be sealed with gaskets, liquid tank seals, or knife-edge seals
Uniform air velocity on the outlet side, stable structure

Product introduction A wide range of filtering efficiency can be provided

- This product uses a barrier-free pleated filter element, greatly reducing resistance and improving filtration efficiency. - Aluminum alloy frame, double-sided EPDM gasket, double-sided protective mesh to ensure the filter is not easily damaged during transportation and installation. - The materials used have extremely low chemical gas generation characteristics, meeting strict requirements of certain special industries. - Each filter undergoes rigorous leak testing before leaving the factory to ensure it meets the highest quality standards. - In addition to gasket-sealed filters, knife-edge or liquid groove sealing is also provided.	Efficiency	Efficiency of EN1822 standard MPPS
	99.99@0.3 μm	99.95% (H13)
	99.999@0.3 μm	99.995% (H14)
	99.9995@0.12 μm	99.9995%(U15)
	99.99995@0.12 μm	99.99995%(U16)
	99.999995@0.12 μm	99.999995%(U17)

Gasket type filter parameters (customizable non-standard)

Dimensions	Air volume	Rated initial resistance				Gasket Type Filter Installation Structure Diagram
WHD(mm)	(m³/h)0.45m/s	H13(Pa)	H14(Pa)	H15(Pa)	H16(Pa)
61061070	600	105	110	120	140
570117070	1080	105	110	120	140
61061093	600	70	80	90	110
570117093	1080	70	80	90	110
610610117	600	60	65	70	85
5701170117	1080	60	65	70	85

Blade type filter parameters (customizable non-standard)

Dimensions	Air volume	Rated initial resistance				Blade type filter Installation Structure Diagram
WHD(mm)	(m³/h)0.45m/s	H13(Pa)	H14(Pa)	H15(Pa)	H16(Pa)
61061088	600	105	110	120	140
570117088	1080	105	110	120	140
610610110	600	70	80	90	110
5701170110	1080	70	80	90	110
610610134	600	60	65	70	85
5701170134	1080	60	65	70	85

Top liquid tank HEPA filter parameters (customizable non-standard)

Dimensions	Air volume	Rated initial resistance				Top liquid tank HEPA filter installation structure diagram
WHD(mm)	(m³/h)0.45m/s	H13(Pa)	H14(Pa)	H15(Pa)	H16(Pa)
61061081	600	105	110	120	140
570117081	1080	105	110	120	140
610610104	600	70	80	90	110
5701170104	1080	70	80	90	110

Side liquid tank HEPA filter parameters (customizable non-standard)

Dimensions	Air volume	Rated initial resistance				Installation structure diagram of side liquid tank filter
WHD(mm)	(m³/h)0.45m/s	H13(Pa)	H14(Pa)	H15(Pa)	H16(Pa)
61061070	525	105	110	120	140
570117070	970	105	110	120	140
61061093	525	70	80	90	110
570117093	970	70	80	90	110
610610117	525	60	65	70	85
5701170117	970	60	65	70	85
