Industrial Safety Cabinet

Industrial safety cabinets are critical equipment for chemical safety management. Their design, materials, and functions strictly comply with international standards to provide reliable protection under extreme conditions. They are typically manufactured from high-quality cold-rolled steel sheets, with surfaces treated by epoxy powder coating to enhance corrosion resistance and durability. The internal structure features flexible, adjustable shelves, and some products include spill containment trays for emergency response.

These cabinets are widely used for storing flammable, combustible, corrosive, toxic, and hazardous chemicals, ensuring safe storage and transportation while reducing safety risks. The diverse product series meets various chemical storage requirements. Color-coding and labeling systems improve identification and enable organized categorical storage.

Proper selection and use of industrial safety cabinets, combined with scientific management protocols, are essential for preventing chemical accidents, protecting personnel health, and ensuring environmental safety.

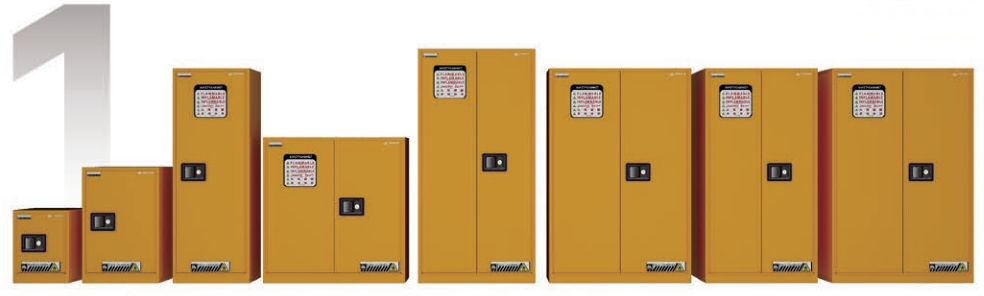

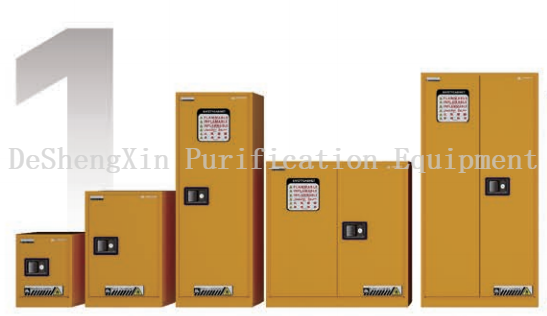

1.Flammable Storage Cabinet

Storage for substances: Primarily used for storing volatile and flammable solid and liquid substances, such as gasoline, alcohol, ethanol, acetone, etc.

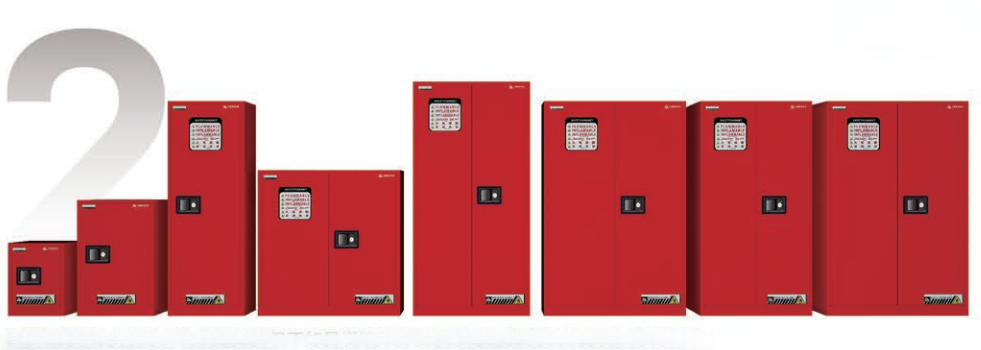

2.Combustible Storage Cabinet

Special Notes

Based on flash points, flammable liquids are classified into two categories and four levels:

• Class I: Flash point below 28°C (e.g., gasoline, alcohol)

• Class II: Flash point between 28°C–45°C (e.g., butanol, kerosene)

• Class III: Flash point between 46°C–120°C (e.g., phenol, diesel)

• Class IV: Flash point above 121°C (e.g., lubricating oil, tung oil)

Liquids in Classes I-II are flammable; liquids in Classes III-IV are combustible.

Chemical Storage Requirements:

1. Store chemicals according to their properties to avoid mixing incompatible or reactive substances.

2. Select appropriate storage equipment specifications.

3. In case of leakage:

• Immediately implement personal protection measures per MSDS

• Perform emergency containment procedures

• Ensure cabinet cleanliness

• Keep cabinet doors closed when not in use.







DSX Industrial safety cabinets Product Features

Double-Layer Fireproof Steel Construction

• 38mm insulation core enhances fire resistance

Premium Cold-Rolled Steel

• Thickness >1.0mm

• Spot-welded for corrosion resistance

Advanced Security Systems

• Three-point latching mechanism: Ensures maximum fire safety

• Piano-type hinges: Enables smooth door operation

• Dual-key access: Optional dual-lock management for enhanced security

Safety Containment & Ventilation

• 50mm-high spill containment sump

• Professionally certified warning labels

• Dual vent openings (top/bottom) with flame arresters

Functional Design

• Adjustable shelves:

• Load capacity: 100kg

• Customizable height positions

• Epoxy electrostatic coating:

• High-gloss finish

• Corrosion/moisture resistance

• Static grounding ports: OSHA-compliant

• Leveling feet: Adjustable base for cabinet stabilization

PRODUCT SPECIFICATION
