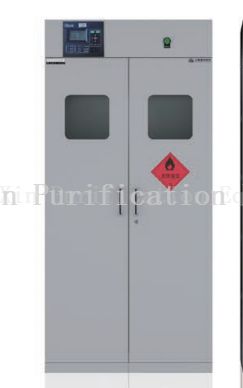

Industrial Gas Cylinder Storage Cabinets

Deshengxin Indoor Gas Cylinder Cabinets effectively address the storage challenges of compressed and liquefied gases, enabling safe storage for methane, acetylene, hydrogen, oxygen, and inert gases, among others. Equipped with an advanced ventilation system, the cabinet promptly exhausts leaked gas to maintain a stable internal environment. It also includes a precise gas monitoring and alarm system that detects real-time concentration changes and triggers an alarm immediately if thresholds are exceeded, ensuring timely hazard detection and response. Clearly visible safety warning labels are posted on the cabinet surface to visually communicate risks, enhancing the safety and reliability of gas cylinder storage.

Product Features

• Cabinet Body: Constructed from cold-rolled steel plate (>1.0mm thick), treated with acid pickling and phosphating, and finished with electrostatic coating for corrosion and rust resistance.

• Door Panel: Built with a double layer of cold-rolled steel plate (>1.0mm thick). Fitted with removable hinges, a tempered glass view window, and safety inspection holes.

• Ventilation Openings: Located on the side panel to ensure adequate airflow and prevent hazardous gas accumulation.

• Adjustable Restraint Brackets & Straps: Securely fasten a variety of gas cylinder sizes using buckle-type straps.

• Pedal & Ramp: Features a reinforced steel pedal and a stowable ramp for easy and safe cylinder handling.

• Handle: Durable zinc alloy handle, designed for both aesthetics and long-term durability.

• Gas Detection Alarm (Optional): Monitors for leaks and triggers an audible/visual alarm when gas concentration reaches a preset threshold. High-sensitivity detection.

• Automatic Exhaust System (Optional): Integrated sensor activates a top-mounted exhaust fan automatically upon leak detection to immediately remove hazardous gases.




• Specification Item	SS-G101N	SS-G102N
  Model	SS-G101N	SS-G102N
  Dimensions (H×W×D)	1900 × 600 × 450 mm	1900 × 900 × 450 mm
  Construction	Single-tier	Single-tier
  Door Type	Single Door	Double Door
  Color	Gray	Gray
  Standard Restraint Set	1 set	2 sets
  Locking Mechanism	Top & Bottom Bolt Lock	Top & Bottom Bolt Lock
  Static Grounding Clamp	1 pc	1 pc

• Note: All specifications are subject to design improvements and may be customized according to requirements.
