Static Elimination & Ionizer FFU FAQs: How Do Anti-Static FFUs Achieve Complete ESD Protection?
In standard manufacturing, dust is the enemy. However, in precision electronics, semiconductor packaging, and medical device manufacturing, there is a hidden, invisible threat that is equally destructive: Static Electricity.
Not only does Electrostatic Discharge (ESD) permanently short-circuit sensitive microchips, but static charges also act like a powerful magnet. Through a process called Electrostatic Attraction (ESA), statically charged surfaces suck micro-particles directly out of the cleanroom air, gluing them to your product and ruining your yield.

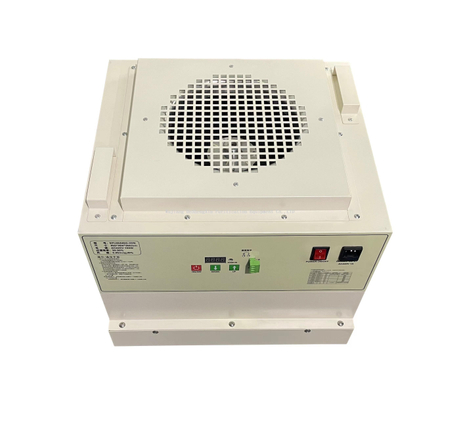

To combat this, Wujiang Deshengxin (DSX) Purification engineers specialized Anti-Static & Ionizer FFUs. But how exactly do these units eliminate static?
DSX achieves complete ESD protection through a highly engineered Dual-Mechanism System: Passive Prevention and Active Neutralization.
Mechanism 1: Passive Prevention (Conductive Surface Engineering)
The first step in ESD protection is ensuring the Fan Filter Unit (FFU) itself does not generate static electricity.
In a standard FFU, high-velocity air constantly rubs against the metal housing and the HEPA filter media. This continuous friction generates a massive static charge on the unit, which can arc or attract dust.
The DSX Passive Solution:
Anti-Static Housings: DSX Anti-Static FFUs are coated with specialized conductive or static-dissipative powder coatings. This engineered surface maintains a precise electrical resistance (typically between 10⁶ to 10⁹ Ohms).
Strict Grounding Paths: We integrate continuous grounding wires connecting the filter frame, motor, and housing. Any static electricity generated by air friction is instantly and safely conducted away to the facility’s earth ground, preventing the FFU from becoming a static hazard.
Mechanism 2: Active Neutralization (Integrated Ionization Technology)
Passive prevention protects the FFU, but what protects the delicate wafers and PCBs sitting on the assembly line below? To eliminate static on your products, you must actively neutralize the air.
The DSX Active Solution:
DSX integrates high-performance Ionizer Systems directly into the aerodynamic exhaust of the FFU.
How it Works (Corona Discharge): The DSX Ionizer utilizes high-voltage emitter points to ionize the surrounding air molecules. It generates a perfectly balanced cloud of both positive (+) and negative (-) ions.
The Airflow Delivery: Because the ionizer is mounted directly below the HEPA filter, the FFU’s powerful, uniform laminar airflow acts as the optimal delivery vehicle. It pushes this dense cloud of ions straight down into the work zone, covering a wide and deep area.
Charge Neutralization: When these ions wash over a statically charged PCB or wafer, the product simply attracts the ions of the opposite polarity. The static charge is instantly neutralized to zero volts.
By eliminating the static charge on your product, you completely eliminate the magnetic pull of Electrostatic Attraction (ESA), preventing micro-particles from adhering to the surface.
The DSX Engineering Advantage: Synergy Between Airflow and Ionization
Many cleanroom suppliers simply bolt a third-party ionizer onto an underpowered FFU. This creates a severe mismatch: if the airflow is too weak, the ions never reach the product; if the airflow is turbulent, the positive and negative ions collide and recombine before doing their job.
At DSX Purification, our R&D team designs the ionizer and the EC Motor to work in absolute synergy.
Smart Auto-Balancing: Our integrated control systems continuously monitor and adjust the ion output, ensuring a precise ion balance (e.g., ±10V to ±30V depending on requirements) without the need for constant manual calibration.
Optimized Coverage: Our custom aerodynamic diffusers ensure that the ionized air flows in a perfectly straight, downward laminar path, ensuring rapid discharge times (decay times) directly on your assembly line.
Stop letting invisible static destroy your product yield.
