High-performance Fire Safety Cabinets

Deshengxin emergency equipment cabinets provide secure and immediately accessible storage for critical rescue equipment and personal protective equipment (PPE). Constructed from durable cold-rolled steel with a protective epoxy coating, these cabinets feature a tempered glass viewing window for quick content identification, adjustable shelving for flexible organization, and sturdy castors for easy mobility—ensuring readiness during emergencies. Designed to support rapid response in hazardous environments, including chemical incidents, these cabinets (models SS-E020V and SS-E073V) help organizations maintain operational readiness and comply with safety protocols. Customization options are available to meet specific operational requirements.

Quantity:
Availability:





Inquire Add to Basket

Model:
Customization
Brand:
DSX
Customized support:
OEM, ODM
Warranty:
1 Year
Certification:
ISO9001

fire safety cabinet EN 14470-1 certified cabinet 90-minute fire rated cabinet Flammable Storage Cabinet Industrial Safety Cabinet Chemical Storage Cabinet Deshengxin OSHA compliant fire cabinet laboratory safety storage explosion-proof cabinet

Product Display

Workshop Introduction

FAQ

High-Performance Fire Cabinet Series Overview:

EN 14470-1:2023 is an international standard for fire safety cabinets that imposes stricter requirements on their design, manufacturing, and testing to enhance fire safety performance and protect lives and property. While ordinary cabinets may rapidly heat up during a fire, potentially damaging their contents, fire safety cabinets are engineered to maintain a stable internal temperature even under high external heat, thereby extending critical evacuation and emergency response time. Users can select a cabinet based on its fire resistance rating—classified into four levels (15, 30, 60, and 90 minutes) under this EU laboratory standard—tailoring the choice to specific risk scenarios to facilitate safe personnel evacuation and effective firefighting operations. The selection of an appropriate fire resistance level should be guided by a thorough risk assessment conducted by responsible corporate safety officers.

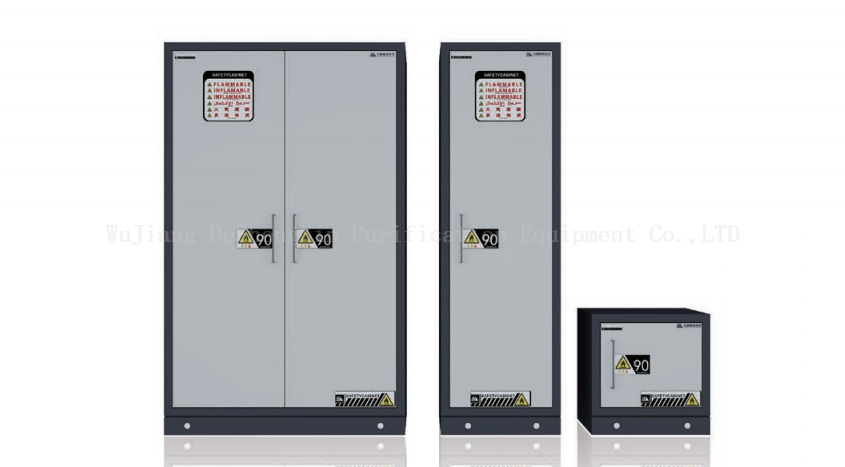

High-Performance Fire Cabinet

High-Performance Fire Cabinet Series Applications

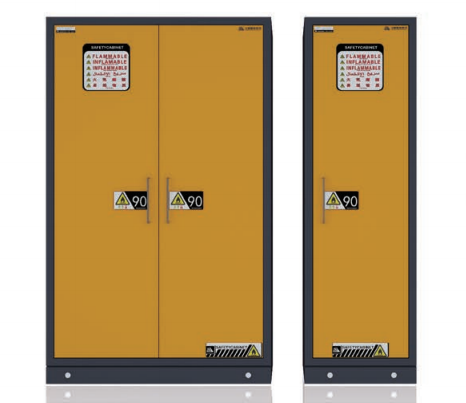

High-Performance Fire Cabinet (2)

Deshengxin High-Performance Fire Cabinet finds wide application across various sectors, including industrial manufacturing, laboratories, healthcare, and new energy lithium battery storage. In industrial settings, it is used for storing flammable paints and solvents. Laboratories utilize it for safekeeping chemicals and other hazardous materials, while the healthcare sector relies on it to ensure the secure storage and handling of pharmaceuticals and chemical reagents. It is also well-suited for storing high-energy-density batteries.

Product Features

Structure & Safety	Fire & Containment
Cabinet Material: >1.2mm cold-rolled steel plate, epoxy electrostatic coating	Filling Material: Aerospace-grade insulation with excellent fire resistance
Door & Seal: Heat-expanding fireproof sealing strip ensures tight closure	Spill-Proof Shelves: 3 galvanized steel tray-style shelves, adjustable
Leak Collection: Perforated liquid containment sump for spill storage	Fireproof Lock: High-security lock, anti-theft and tamper-proof
Static Grounding: Discharge terminal to eliminate ignition hazards	Auto-Closing System: Releases at 47°C to ensure door sealing
Leveling Feet: Adjustable feet to stabilize the cabinet	Ventilation System: Inlet/outlet ports for connection to exhaust systems
Safety Labels: Highly visible "No Open Flame" warning labels	Pressure Control: Maintains negative pressure inside the cabinet
Temperature Sensor: Vents close automatically at 70±10°C	Fire & Explosion Protection: Withstands internal chemical explosion pressure
Fire Resistance: 90-minute fire rating, compliant with EN 14470-1

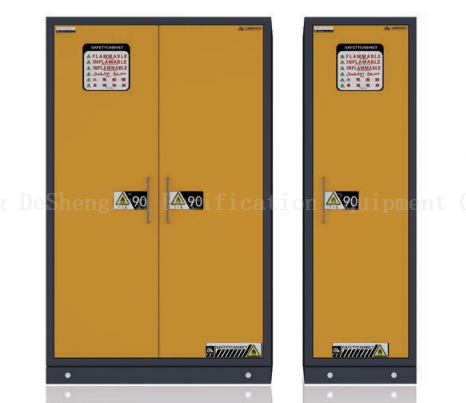

High-Performance Fire Cabinet (3)

Design Requirements

Material & Structure	Safety & Sealing
Material Selection: 1.2mm high-quality cold-rolled steel plate with high strength and corrosion resistance	Ventilation System: Top exhaust port ensures full air replacement; vents close automatically to prevent oxygen inflow
Insulation Layer: Highly efficient fireproof material; inner layer made of high-temperature-resistant melamine composite board	Leak Prevention: Leak containment sump at the bottom collects spilled liquids
Structural Design: Double-wall insulation; outer steel plate provides strength, middle layer slows heat transfer, inner fireproof board protects stored items	Static Protection: Equipped with grounding device to prevent spark risks caused by static accumulation
	Sealing Performance: Heat-resistant fireproof sealing strips around the door; auto-closing mechanism activates at set temperature

Product Specifications

Specification Item	SS-F593D(30/90)	SS-F599D(30/90)	SS-F1195D(30/90)
Model	SS-F593D(30/90)	SS-F599D(30/90)	SS-F1195D(30/90)
Dimensions (H×W×D)	600 × 593 × 502 mm	1950 × 599 × 615 mm	1950 × 1195 × 615 mm
Capacity	27L / 7 gallons	95L / 25 gallons	284L / 75 gallons
Door Type	Single Door	Single Door / Stay-open function	Single Door / Stay-open function
Color	Yellow / Off-white	Yellow / Off-white	Yellow / Off-white
Interior	Bottom collection sump	3 shelves + bottom collection sump	3 shelves

Workshop Introduction

What is a fire safety cabinet used for?
It safely stores flammable liquids and hazardous materials to reduce fire risks and protect contents during emergencies.
What fire resistance ratings are available?
Cabinets offer 15-, 30-, 60-, or 90-minute fire ratings per EN 14470-1 classifications.
What materials are used in the cabinet construction?
It features 1.2mm cold-rolled steel, epoxy coating, and aerospace-grade insulation.
Can the cabinet withstand internal explosions?
Yes, it is designed to contain internal pressure from chemical explosions.
How does the automatic door sealing work?
Doors automatically close at 47°C to prevent fire and smoke spread.
Are ventilation ports included?
Yes, ports are provided for external ventilation system connections.
What types of facilities use these cabinets?
Industrial plants, labs, healthcare facilities, and energy storage sites.
Is static protection included?
Yes, a grounding terminal prevents static ignition risks.
Can shelves be adjusted?
Yes, galvanized steel shelves are adjustable for flexible storage.
How are leaks contained?
A perforated sump at the bottom collects and retains spilled liquids.
Are the cabinets movable?
Some models include base casters for easy relocation.
What colors are available?
Yellow or off-white for high visibility and safety identification.
What is the purpose of the heat-expanding door seal?
It expands during fire exposure to seal gaps and prevent oxygen entry.
Can doors be set to stay open?
Select models include a stay-open function for convenient access.
How does the temperature-sensitive vent closure work?
Vents automatically shut at 70±10°C to isolate the cabinet interior.
What is the largest cabinet capacity available?
The SS-F1195D model offers 284L (75 gallons) of storage.
Are warning labels included?
Yes, highly visible “No Open Flame” labels are standard.
Can cabinets store lithium batteries?
Yes, they are suitable for high-energy-density battery storage.
How do I select the right fire rating?
Choose based on risk assessment—higher ratings (e.g., 90-minute) for higher hazards.
