Deshengxin High Air Volume Box HEPA Filter – V-Bank Design for Energy-Efficient, High-Capacity Air Filtration
1. Overview
The Deshengxin High Air Volume Box HEPA Filter is an advanced, high-capacity air filtration solution engineered to deliver superior air quality across a broad spectrum of environments. This innovative filter combines the aerodynamic efficiency of V‑bank (V‑shaped) pleated media with the proven particle-capture performance of HEPA technology, offering an exceptional balance of high airflow capacity, low energy consumption, and reliable contaminant removal.
Whether deployed in commercial buildings, industrial facilities, healthcare settings, or residential ventilation systems, this filter provides unmatched performance and durability. Its unique V-shaped configuration maximises the effective filtration surface area within a compact box enclosure, enabling higher dust-holding capacity and lower pressure drop compared to conventional flat or mini-pleat filters. The result is a filtration solution that not only delivers cleaner air but also reduces HVAC system energy consumption, extends equipment life, and lowers overall operating costs.
Deshengxin offers this high-performance filter in both metal-frame and plastic-frame options, along with multiple standard sizes (24"×24" and 12"×24") to accommodate diverse airflow requirements and installation configurations. As a full-chain source manufacturer, we combine engineering excellence with cost-effective production, ensuring that you receive the optimal filtration solution for your specific application.
2. What is a V-Bank HEPA Filter?
A V‑bank (or V‑shaped) HEPA filter is a high-efficiency air filter featuring a unique pleated media configuration where the filter packs are arranged in a V-shaped pattern within a rigid box frame. This geometry significantly increases the effective media surface area compared to traditional flat filters of the same footprint, allowing for:
Higher airflow capacity at the same or lower pressure drop.
Greater dust-holding capacity – the filter can capture more contaminants before reaching final resistance.
Extended service life – less frequent replacement, reducing maintenance costs.
Energy savings – lower resistance means reduced fan energy consumption.
This design is particularly advantageous for HVAC systems, air handling units (AHUs), and cleanroom applications where high airflow volumes and energy efficiency are critical priorities.
3. Key Features & Benefits
3.1 V-Bank Design – Maximised Filtration Surface Area
The core innovation of this filter is its V-shaped pleated media configuration. By arranging the filter media in multiple V-shaped packs, the effective filtration area is substantially increased within the same frame size. This design delivers:
Greater airflow – accommodates high air volumes without excessive resistance.
Superior particle capture – more media area means more opportunities to capture contaminants.
Lower pressure drop – air flows more freely through the expanded media, reducing system strain.
3.2 High Filtration Efficiency – Up to 99.97% at 0.3μm
The High Air Volume Box HEPA Filter achieves HEPA-class efficiency – capturing up to 99.97% of airborne particles at 0.3 microns. This includes:
This high capture rate ensures a cleaner, healthier indoor environment for building occupants, patients, workers, and sensitive equipment.

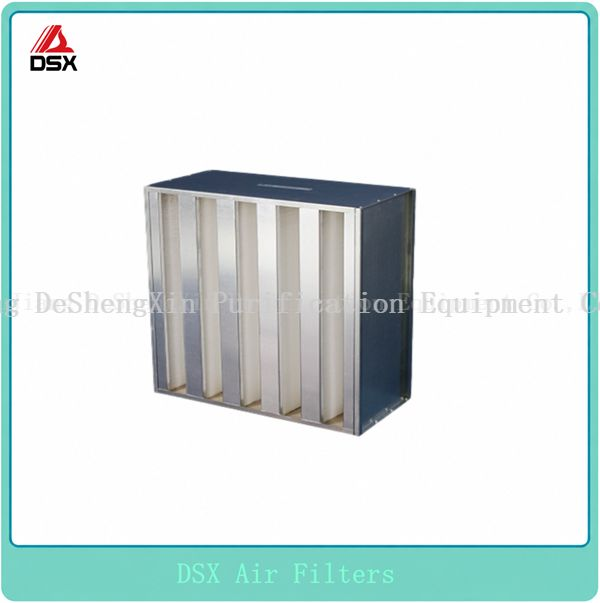

3.3 Durable Metal Frame Option
Built with a robust metal frame, this filter provides superior structural integrity and long-term stability. The metal frame offers:
Enhanced protection for the delicate filter media.
Resistance to deformation under high airflow or pressure conditions.
Extended filter lifespan and reliable performance in demanding industrial applications.
3.4 Lightweight Plastic Frame Option
For applications prioritising lightweight and cost-effective solutions, the filter is also available with a plastic frame. Benefits include:
Easier handling and installation – reduces labour time.
Corrosion resistance – suitable for humid or chemically active environments.
Competitive pricing – an economical choice without compromising filtration performance.
3.5 Compact Box Design for Easy Installation
The filter features a self-contained box-type housing that simplifies installation and replacement. Its compact and versatile design is compatible with:
Standard HVAC filter banks.
Air handling units (AHUs).
Cleanroom ceiling systems.
Custom equipment requiring high-efficiency terminal filtration.
No specialised tools or complex modifications are required – simply slide the filter into place.
3.6 Ultra-Low Pressure Drop – Significant Energy Savings
The V-shaped pleat geometry minimises airflow resistance, resulting in an ultra-low pressure drop compared to conventional filters. This translates to:
Reduced burden on fans and blowers.
Lower energy consumption – HVAC systems operate more efficiently.
Decreased operational costs – a direct impact on your facility's bottom line.
Compliance with green building standards and energy efficiency targets.
3.7 Extended Service Life – Reduced Maintenance Frequency
The expanded media surface area provides greater dust-holding capacity, allowing the filter to capture more contaminants before reaching the recommended final resistance. Benefits include:
Longer replacement intervals.
Reduced maintenance downtime.
Lower total cost of ownership (TCO) over the filter's lifecycle.
3.8 Versatile Sizes for Application Flexibility
Deshengxin offers this filter in two standard sizes to accommodate varying airflow requirements:
Additional custom sizes are available upon request.
4. Technical Specifications
5. Primary Applications
The Deshengxin High Air Volume Box HEPA Filter is a versatile solution suitable for a wide range of sectors and environments:
5.1 Commercial Buildings
Office towers, shopping centres, hotels, and educational institutions benefit from improved indoor air quality (IAQ), enhancing occupant health, comfort, and productivity.
5.2 Healthcare Facilities
Hospitals, clinics, surgical suites, and isolation rooms require high-efficiency filtration to protect patients, staff, and visitors from airborne pathogens. This filter meets the stringent demands of healthcare ventilation standards.
5.3 Pharmaceutical & Biotechnology
In drug manufacturing, compounding pharmacies, and research laboratories, the filter maintains clean conditions essential for product integrity and regulatory compliance (GMP, FDA).
5.4 Industrial Manufacturing
Factories and production facilities use this filter to remove industrial dust, fumes, and particulate emissions, protecting both workers and sensitive manufacturing equipment.
5.5 Cleanrooms & Controlled Environments
From electronics assembly to semiconductor fabrication, this filter provides terminal or secondary filtration for ISO-classified cleanrooms, ensuring product yield and process reliability.
5.6 Food & Beverage Processing
Food production and packaging areas require hygienic air to prevent microbial contamination and extend product shelf life. This filter effectively removes airborne mould, yeast, and bacterial spores.
5.7 Residential & Multi-Family Housing
Luxury apartments, condominiums, and high-end residential developments are increasingly adopting high-efficiency filtration to deliver superior indoor air quality to health-conscious residents.
5.8 Data Centres
Particulate contamination can cause overheating and equipment failure in server rooms. This filter provides clean cooling air, protecting valuable IT infrastructure.
6. Why Choose Deshengxin – The Full-Chain Manufacturer Advantage
6.1 Advanced V-Bank Engineering
Deshengxin's V-bank filters are precisely engineered with optimised pleat geometry and material selection to deliver the highest possible performance in the smallest possible footprint. Our design expertise ensures that every filter provides consistent, reliable filtration across its entire service life.
6.2 Full-Chain Manufacturing – Cost & Quality Control
As a full-chain source manufacturer, Deshengxin controls every stage of production – from media sourcing and pleating to frame fabrication, assembly, and final testing. This vertical integration delivers:
Competitive pricing – no intermediary markups.
Consistent quality – every batch meets the same high standards.
Rapid customisation – non-standard sizes and configurations delivered quickly.
6.3 Energy-Efficient Design – Lower Operational Costs
Our V-shaped filter technology significantly reduces pressure drop compared to traditional HEPA filters. This design innovation directly translates to lower energy consumption, reduced carbon footprint, and substantial savings on electricity bills over the filter's lifetime.
6.4 Comprehensive Customisation
We understand that one size does not fit all. Deshengxin offers:
Custom dimensions (width, height, depth).
Alternative frame materials.
Specific efficiency grades (H13, H14, or ULPA options).
Special sealing or gasket configurations.
Contact our technical team with your requirements, and we will deliver a tailored solution.
6.5 Rigorous Quality Assurance
Every filter undergoes thorough quality checks, including:
Media integrity inspection.
Pressure drop measurement.
Efficiency verification.
Visual and dimensional inspection.
We provide test certificates upon request, ensuring full traceability and accountability.
6.6 Global Trust & Track Record
Deshengxin has supplied high-efficiency filters to clients in over 50 countries, earning a reputation for reliability, performance, and value. Major corporations across healthcare, manufacturing, and technology sectors trust Deshengxin for their critical air filtration needs.
7. Frequently Asked Questions (FAQ)
Q1: What is a V-bank HEPA filter?
A: A V-bank HEPA filter uses a V-shaped pleated media configuration within a box frame. This design maximises filtration surface area, allowing higher airflow, lower pressure drop, and greater dust-holding capacity than standard flat filters.
Q2: What is the difference between the metal frame and plastic frame options?
A: The metal frame offers superior durability, structural strength, and protection for heavy-duty industrial applications. The plastic frame is lighter, easier to handle, and more cost-effective – ideal for commercial and residential applications where corrosion resistance is also an advantage.
Q3: How often should this filter be replaced?
A: Replacement intervals depend on system conditions, inlet air quality, and operating hours. Typically, replace when the pressure drop reaches 1.5–2× the initial resistance, or according to your regular maintenance schedule.
Q4: Can this filter be used in high-humidity environments?
A: Yes, it is rated for up to 80% RH. For higher humidity or specialised conditions, please consult our technical team for suitable media treatments.
Q5: Are custom sizes available?
A: Yes. Deshengxin specialises in custom-sized filters. Provide your required dimensions, airflow, and efficiency specifications, and we will manufacture a filter to your exact needs.
Q6: Is this filter energy-efficient?
A: Absolutely. The V-shaped design significantly reduces pressure drop, which lowers fan energy consumption and reduces overall HVAC operating costs compared to conventional HEPA filters.
