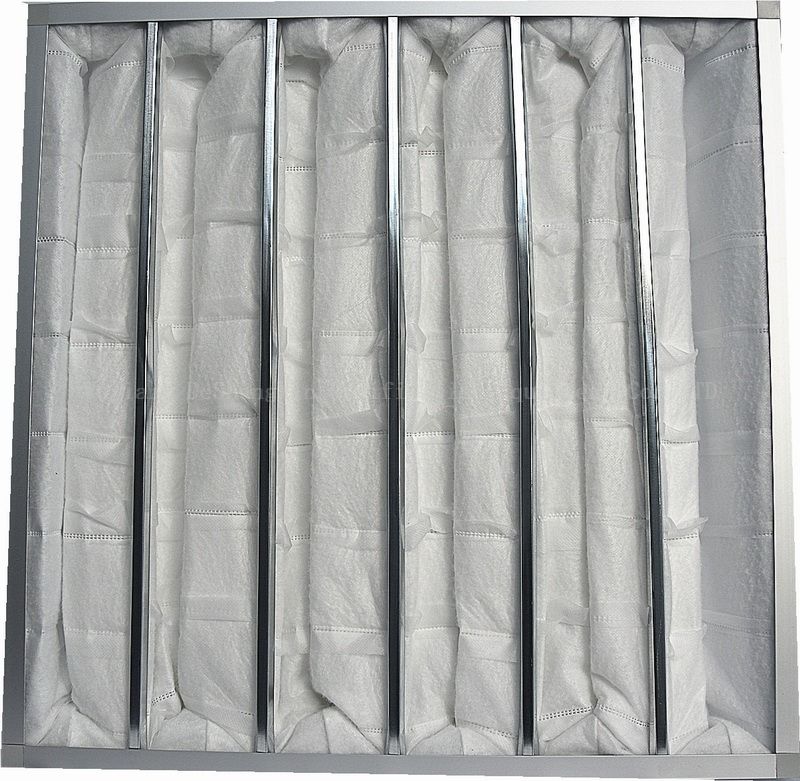

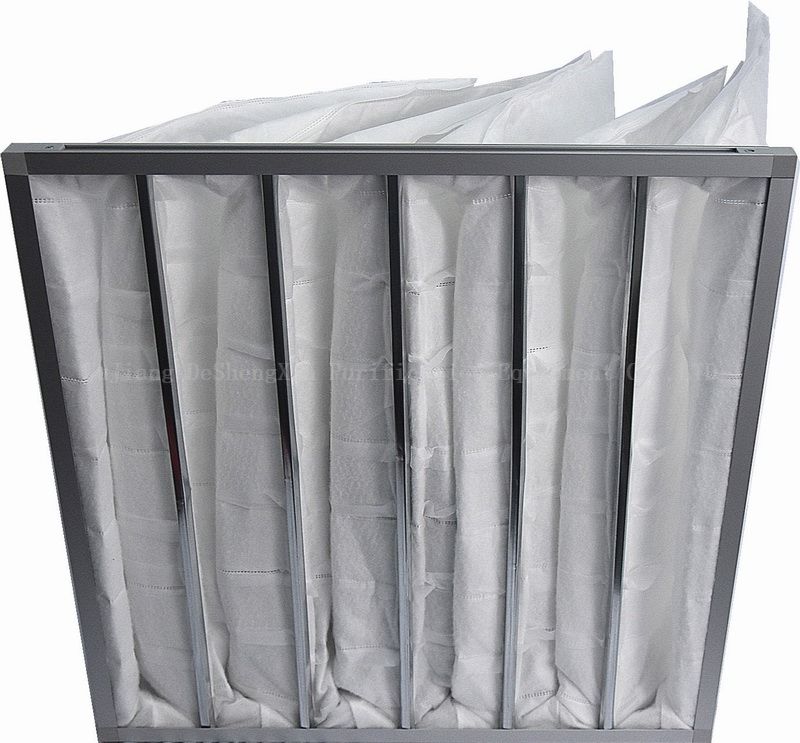

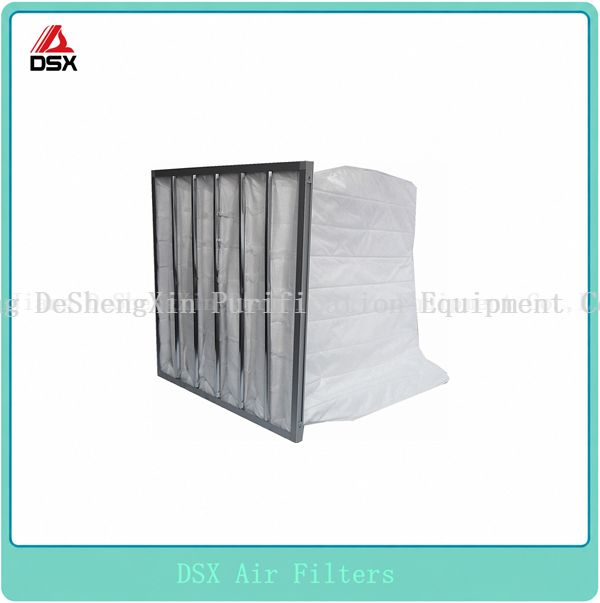

Product Introduction: Deshengxin F9 Medium-Efficiency Bag Filter

The Deshengxin F9 Medium-Efficiency Bag Filter is crafted from high-performance electrostatic filter media, specifically designed to capture submicron (<1μm) dust particles and various suspended particles. Due to its unique fiber structure, the filter media exhibits high permeability and a substantial dust holding capacity. When used in conjunction with other filters, it provides excellent protection, reducing the frequency of filter replacements and lowering operational costs.

Product Structure:

The outer frame of the Deshengxin F9 Bag Filter can be constructed from aluminum alloy, galvanized steel, or ABS plastic. The filter material consists of a non-woven fabric bag compounded with polypropylene melt-blown non-woven fabric, polypropylene fibers, and spunbonded fabric. The bag is seamlessly fused using ultrasonic heat-sealing technology. Each filter bag features multiple non-woven partitions evenly distributed within, fused using ultrasonic technology. These partitions not only serve to equalize airflow but also prevent excessive expansion of the filter bag under wind pressure, thereby maintaining effective filtration area and efficiency.

Efficiency Levels:

The Deshengxin F9 Bag Filter is available in various efficiency levels, including M5/F5 (brown), M6/F6 (green), F7 (pink), F8 (light yellow), and F9 (white).

Product Features:

1. High-Performance Non-Woven Fabric: The filter bag is made of high-performance non-woven fabric using thermal bonding technology, eliminating the discomfort associated with traditional glass fiber materials.

2. Electrostatic Fibers: The filter media contains electrostatic fibers, providing exceptional dust filtration efficiency with high dust capture rates, high permeability, high dust holding capacity, and long service life.

3. Positioning Air Channels: Each filter bag has positioning air channels to ensure optimal filtration performance.

4. Secure Fixation: The filter bags are fixed with metal clips or rivets to prevent tearing due to friction at high wind speeds.

5. Multi-Layer Lining: The filter bags have multiple inner linings to prevent excessive expansion under wind pressure, thereby maintaining effective filtration area and efficiency.

6. Thermal Bonding: The filter bags are sewn using thermal bonding, ensuring excellent airtightness and bonding strength, preventing leakage and rupture.

7. Thickness Options: Available in thicknesses of 21mm, 25mm, and 46mm.

8. Operating Conditions: Maximum operating temperature and humidity of 80°C and 80%RH, respectively.

9.


Applications:

1. Central HVAC Systems: Intermediate filtration in central air conditioning ventilation systems.

2. Cleanroom Ventilation: Intermediate filtration in ventilation systems for industries and medical cleanrooms, including pharmaceuticals, hospitals, electronics, food processing, and automotive painting workshops.

3. Pre-filter for Other Filters: Serving as a pre-filter to reduce the load on subsequent filters, extending their service life.

Choose Deshengxin for reliable and efficient medium-efficiency filtration solutions.
