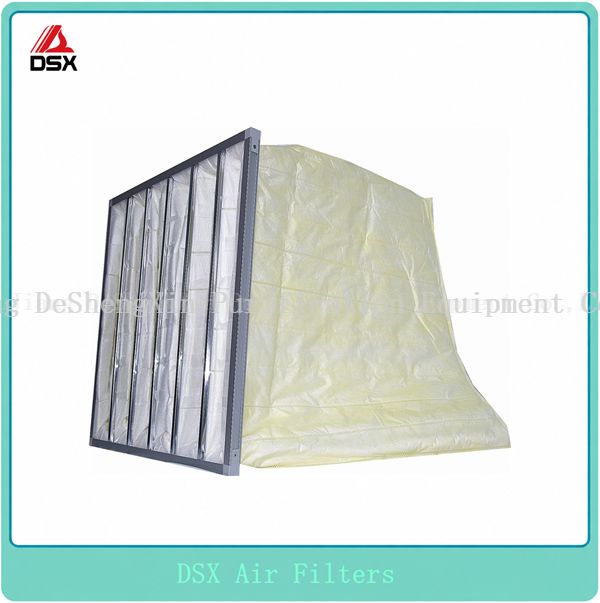

Deshengxin F8 Medium-Efficiency Bag Filter Product Introduction

Introducing the Deshengxin F8 Medium-Efficiency Bag Filter, a sophisticated filtration solution crafted from high-performance electrostatic filter media. This filter is specifically designed to capture submicron particles (<1μm) and various suspended particulates with exceptional efficiency. Thanks to its unique fiber structure, the filter media boasts high permeability and a substantial dust holding capacity, providing robust protection for subsequent filters when used in conjunction. Furthermore, it significantly reduces the frequency of filter replacements, translating to cost savings for the end-user.

Product Structure:

The Deshengxin F8 Bag Filter features a versatile frame available in aluminum alloy, galvanized steel, or ABS plastic to suit a range of installation requirements. The filter media is a non-woven fabric bag composed of a composite of polypropylene melt-blown non-woven fabric, polypropylene fibers, and spunbonded fabric. The bag is seamlessly fused using ultrasonic heat-sealing technology, ensuring an airtight and durable construction. Each filter bag incorporates multiple non-woven partitions evenly distributed within the bag, fused using ultrasonic technology. These partitions not only aid in air distribution but also prevent excessive expansion of the filter bag under wind pressure, thereby maintaining effective filtration area and efficiency.

Efficiency Levels:

The Deshengxin F8 Bag Filter is available in various efficiency levels, including M5/F5 (dark brown), M6/F6 (green), F7 (pink), F8 (light yellow), and F9 (white), to cater to diverse filtration needs.

Product Features:

1. High-Performance Non-Woven Fabric: The filter bags are made from high-performance non-woven fabric using hot-melt technology, eliminating the discomfort associated with traditional glass fiber materials.

2. Electrostatic Fibers: The filter media contains electrostatic fibers, which offer exceptional dust filtration efficiency with high dust capture rates, high permeability, high dust holding capacity, and long service life.

3. Localized Air Channels: Each filter bag features localized air channels to ensure optimal filtration performance.

4. Metal Clips or Riveted Fixation: The filter bags are secured with metal clips or rivets to prevent tearing due to wind friction at high velocities.

5. Multiple Internal Linings: The filter bags incorporate multiple internal linings to prevent excessive expansion under wind pressure, thereby maintaining effective filtration area and efficiency.

6. Hot-Melt Seams: The filter bags are sewn using hot-melt seams, providing excellent airtightness and bonding strength, ensuring no leakage or tearing.

7. Thickness Options: Available in thicknesses of 21mm, 25mm, and 46mm to suit various applications.

8. Temperature and Humidity Ratings: Suitable for use at temperatures up to 80°C and humidity levels up to 80%RH.

9.


Applications:

1. Medium-Level Filtration in HVAC Systems: Ideal for intermediate filtration in central air conditioning ventilation systems.

2. Industrial and Medical Cleanrooms: Suitable for ventilation systems in industries such as pharmaceuticals, hospitals, electronics, food processing, and automotive painting workshops, as well as medical cleanrooms.

3. Pre-filter for Other Filters: Acts as a pre-filter to reduce the load on subsequent filters, extending their service life.

Choose Deshengxin F8 Medium-Efficiency Bag Filter for superior filtration performance, cost savings, and a healthier indoor environment.
