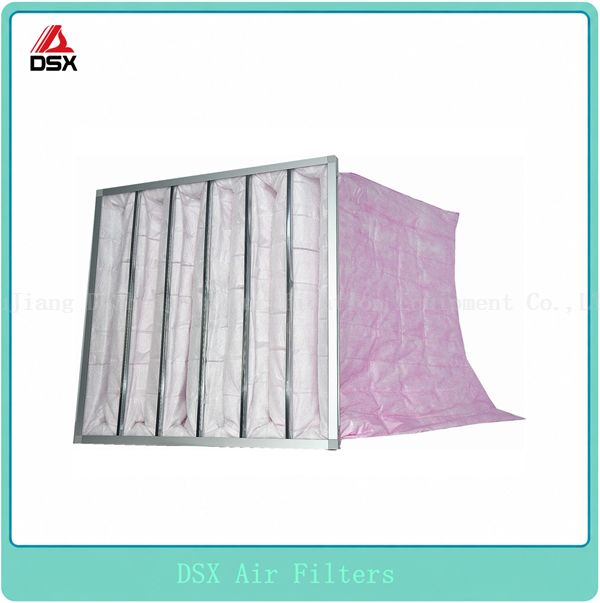

Deshengxin F7 Medium-Efficiency Bag Filter Product Introduction
Deshengxin proudly presents the F7 Medium-Efficiency Bag Filter, a reliable and efficient filtration solution crafted from high-performance electrostatic filter media. Designed to capture submicron particles (<1μm) and various suspended particles, this filter ensures cleaner air for your environment. The unique fiber structure of the filter media provides high air permeability and dust holding capacity, offering excellent protection for subsequent filters when used in conjunction. It also reduces the frequency of filter replacements, lowering operational costs.
Product Structure: The F7 Bag Filter features a sturdy frame available in aluminum alloy, galvanized steel, or ABS plastic to accommodate various installation needs. The filter media is composed of a non-woven fabric bag made by laminating polypropylene melt-blown non-woven fabric, polypropylene fibers, and spunbonded fabric. The bag is seamlessly fused using ultrasonic heat sealing technology. Each filter bag is equipped with multiple non-woven partitions evenly distributed within the bag, fused using ultrasonic technology. These partitions not only help distribute air evenly but also prevent the bag from over-expanding under wind pressure, thereby maintaining effective filtration area and efficiency.
Efficiency Ratings: M5/F5 (Dark Brown), M6/F6 (Green), F7 (Pink), F8 (Light Yellow), F9 (White)
Product Features:
High-Performance Non-Woven Fabric: Made using thermal bonding technology, the filter bags avoid the discomfort associated with traditional glass fiber materials.
Electrostatic Fibers: The filter media contains electrostatic fibers, providing exceptional dust filtration efficiency with high dust capture rates, high air permeability, high dust holding capacity, and long service life.
Positioning Air Channels: Each filter bag has a positioning air channel to ensure better filtration performance.
Secure Fixation: The filter bags are fixed with metal clips or perforated riveting to prevent tearing due to friction at high wind speeds.
Multi-Layer Lining: The filter bags have multiple internal linings to prevent over-expansion under wind pressure, maintaining effective filtration area and efficiency.
Thermal Bonded Seams: The filter bags are sewn using thermal bonding, providing excellent airtightness and bonding strength, preventing air leakage and tearing.
Customizable Thickness: Available in thicknesses of 21mm, 25mm, and 46mm, customizable based on requirements.
Operational Limits: Suitable for use at temperatures up to 80°C and humidity levels of 80% RH.
Applications:
Intermediate Filtration in Central HVAC Systems: Provides effective filtration for central air conditioning and ventilation systems.
Industrial and Medical Cleanroom Ventilation: Suitable for pharmaceutical, hospital, electronic, food, and automotive painting workshops, ensuring cleaner air in cleanroom ventilation systems.
Pre-filter for Other Filters: Acts as a pre-filter to reduce the load on subsequent filters, extending their service life.
Choose the Deshengxin F7 Medium-Efficiency Bag Filter for reliable and efficient intermediate filtration in HVAC systems, cleanroom ventilation, and industrial applications, maintaining a clean and healthy air environment while reducing operational costs.
