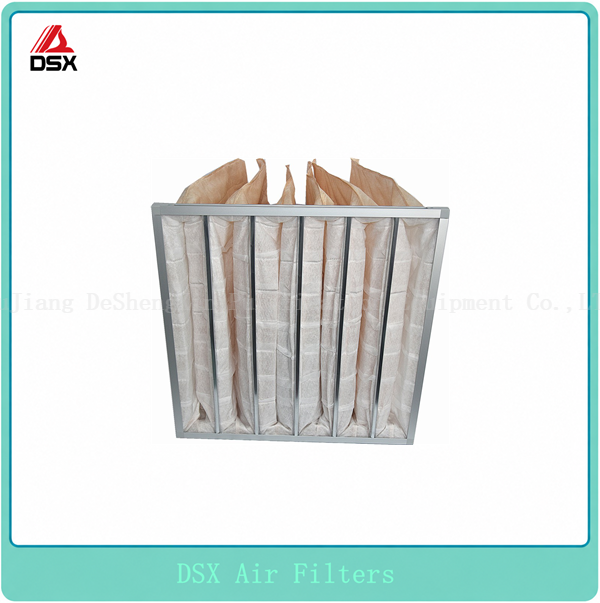

Product Introduction: Deshengxin F5 Medium-Efficiency Bag Filter

Deshengxin proudly presents the F5 Medium-Efficiency Bag Filter, a cutting-edge filtration solution designed for intermediate filtration in HVAC systems, cleanrooms, and industrial ventilation applications. Crafted from high-performance electrostatic filter media, this filter effectively captures sub-micron particles (<1μm) and various suspended solids, ensuring cleaner air for your environment.

Product Structure: The F5 Bag Filter features a sturdy frame available in aluminum alloy, galvanized steel, or ABS plastic, accommodating various installation needs. The filter media is a non-woven fabric bag composite of polypropylene melt-blown non-woven fabric, polypropylene fiber, and spunbond fabric, seamlessly fused using ultrasonic heat-sealing technology. Each bag is reinforced with multiple non-woven separators evenly distributed within, enhancing airflow uniformity and preventing over-expansion under wind pressure, thus maintaining effective filtration area and efficiency.

Efficiency Ratings: Available in various efficiency ratings including M5/F5 (dark brown), M6/F6 (green), F7 (pink), F8 (light yellow), and F9 (white), the F5 Bag Filter offers flexibility to meet specific filtration requirements.

Product Features:

1. High-Performance Non-Woven Fabric: Made with thermal bonding technology, avoiding discomfort associated with traditional glass fiber materials.

2. Electrostatic Fibers: Enhances dust filtration efficiency, providing high dust capture rates, high air permeability, high dust loading capacity, and extended service life.

3. Localized Air Channels: Ensures optimal filtration performance by directing airflow through each filter bag.

4. Secure Fixation: Bags are fixed with metal clips or rivets to prevent tearing at high wind speeds.

5. Multi-Layer Lining: Prevents excessive expansion under wind pressure, maintaining effective filtration area and efficiency.

6. Thermal Bonding Seams: Ensures excellent airtightness and bonding strength, preventing air leakage and rupture.

7. Various Thicknesses: Available in thicknesses of 21mm, 25mm, and 46mm to suit different system configurations.

8. Operational Limits: Suitable for use at temperatures up to 80°C and humidity levels of 80% RH.

Applications:

1. Intermediate Filtration in HVAC Systems: Protects central air conditioning ventilation systems from dust accumulation.

2. Cleanroom Ventilation: Ideal for pharmaceutical, hospital, electronic, food, and automotive painting workshops, ensuring a clean and safe environment.

3. Pre-Filter for High-Efficiency Filters: Reduces load on subsequent filters, extending their lifespan.

Usage Precautions:

1. Regularly check for blockages on the inlet side and damage to the filter media.

2. Remove any blockages promptly.

3. Replace severely damaged filter media or the entire filter assembly.

4. Ensure a tight seal between the filter and frame to prevent air leakage.

5. Avoid impacting or stretching the filter media.

6. Install with the bag opening perpendicular to the ground for optimal filtration and longer service life.

Choose the Deshengxin F5 Medium-Efficiency Bag Filter for reliable and efficient intermediate filtration, maintaining a clean and healthy air environment in your HVAC systems, cleanrooms, and industrial ventilation applications.
