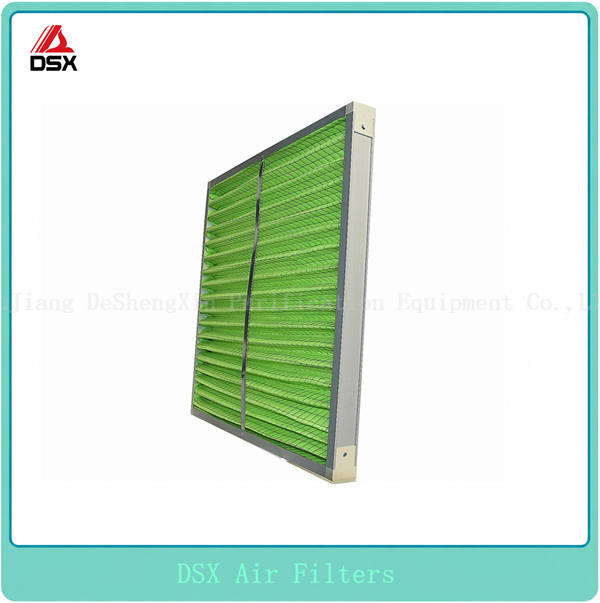

The Deshengxin Double-Sided Medium-Efficiency Panel Filter is designed for intermediate filtration in ventilation systems, primarily targeting sub-micron particles (<1μm) and various suspended contaminants.

Product Structure:

• Frame Materials: Options include aluminum alloy, galvanized steel, and ABS plastic frames.

• Filter Media: Constructed from a composite of polypropylene melt-blown non-woven fabric, polypropylene fibers, and spunbond fabric. The outlet surface is reinforced with a folded metal mesh or fixed with a male-female dragonbone frame for stability.

Product Features:

1. Sturdy Metal Frame: Provides a robust and durable structure.

2. High Dust Holding Capacity, Low Resistance, and High Airflow: Ensures efficient filtration with minimal pressure drop, allowing for greater airflow.

3. Various Thicknesses: Available in standard thicknesses of 21mm, 25mm, and 46mm to suit different applications.

4. High Temperature & Humidity Resistance: Can withstand temperatures up to 80°C and humidity levels up to 80% RH, making it suitable for demanding environments.

Applications:

1. Intermediate Filtration in HVAC Systems: Helps prevent dust accumulation and contamination within the system, maintaining cleaner air circulation.

2. Centralized Ventilation Systems in Cleanrooms: Acts as an intermediate filter to prolong the lifespan of subsequent high-efficiency filters.

3. Ventilation Systems in Industrial Plants: Meets general air cleanliness requirements in standard industrial settings.

4.


Choose the Deshengxin  Double-Sided Medium-Efficiency Panel Filter for reliable and efficient filtration in your ventilation systems. Our commitment to quality ensures that each product is designed and manufactured to the highest standards, providing optimal performance and value.
