Customization
DSX
OEM, ODM
1 Year
ISO9001

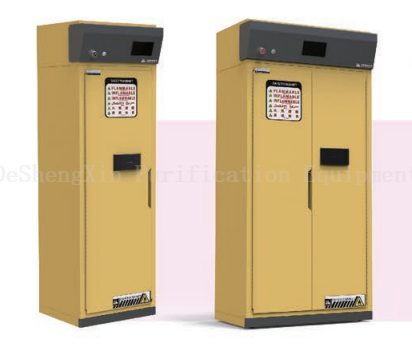

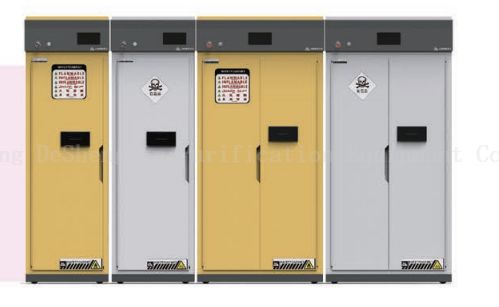

Deshengxin Chemical Reagent Cabinet Series Overview:
Deshengxin Chemical Reagent Cabinet Series ensure the safe storage of chemicals, reduce accident risks, and comply with regulatory requirements, thereby enhancing safety management in laboratories and industrial facilities while protecting personnel and the environment. These cabinets are categorized based on the nature of the reagents—such as flammable, explosive, toxic, or hazardous—enabling scientific classification, storage, and management according to chemical properties, risk levels, and storage requirements.
Deshengxin Chemical Reagent Cabinet Series Applications
Flammable and Explosive Materials
Flammable storage cabinets are specifically designed for storing flammable liquids, spontaneously combustible substances, and other explosive reagents. Special attention must be paid to fire prevention and static electricity control during storage.

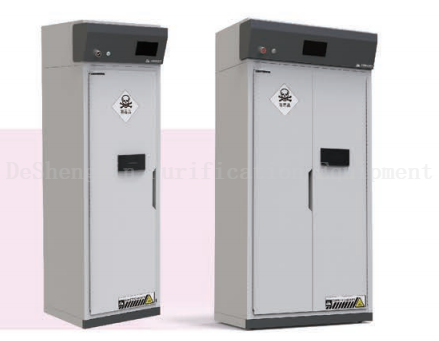

Toxic and Hazardous Materials
Deshengxin toxic and hazardous material storage cabinets are specifically designed for storing toxic chemicals and hazardous substances. These reagents require special attention to prevent leakage and volatilization during storage. Therefore, the cabinets emphasize excellent sealing performance and well-controlled ventilation conditions to ensure safety.
Deshengxin Environmental Control System (ECS) is designed to precisely monitor and manage environmental parameters within a defined space. Key conditions such as temperature, humidity, air quality, and pressure differentials are maintained within optimal ranges to ensure ideal operational or environmental conditions.

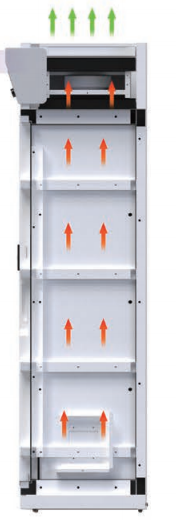

The system includes a Ventilation and Filtration System (refer to the diagram on the right), which features reserved exhaust ports designed in compliance with industry standards. It utilizes safe, silent, and spark-free fans with anti-static properties.
Screen Display:
7-inch touch screen with a safe and stable mainboard for user-friendly operation.
Intelligent Control Features:
Temperature & humidity detection, VOC monitoring, fan management, early warning system, and equipment compliance management.
Filtration and Purification System:
Equipped with a three-layer protection mechanism, this system is specifically designed for efficient treatment and protection against toxic and harmful gases. Built-in sensors enable real-time air quality monitoring, with automatic alarms triggered by abnormalities to ensure laboratory safety.
Product Features
| Structure & Safety | Function & Configuration |
|---|---|
| Material: Shell: ≥1.0mm steel with epoxy coating; Liner: PP corrosion-resistant material | Lock: GA electronic code lock with mechanical key & password dual authentication |
| Construction: Double-layer fireproof structure filled with fire-resistant media, sealed against fire | Leak Prevention: >120mm sand-filled spill containment sump at the bottom |
| Hinges: Piano-style hinges for smooth 180° opening and closing | Mobility: Adjustable leveling feet and heavy-duty casters for easy movement |
| Shelving: Optional stepped or flat PP shelves with reinforced base for load-bearing stability | Electrical Components: Power supply, buzzer, grounding, etc., comply with relevant standards |
Product Specifications
| Specification Item | SS-C049V | SS-C075V |
|---|---|---|
| Model | SS-C049V | SS-C075V |
| Dimensions (H×W×D) | 1890 × 510 × 510 mm | 1890 × 900 × 510 mm |
| Construction | Double-Layer | Double-Layer |
| Door Type | Single Door | Double Door |
| Color | Yellow / Off-white | Yellow / Off-white |
| Shelves | 3 Leak-Proof Shelves | 3 Leak-Proof Shelves |
| Locking Mechanism | GA Lock / Electronic Code Lock | GA Lock / Electronic Code Lock |
| Static Grounding Clamp | 1 pc | 1 pc |
Which types of chemicals can Deshengxin Chemical Reagent Cabinet store?
It is designed for classified storage of flammable liquids, spontaneously combustible substances, explosive reagents, toxic chemicals, and other hazardous materials—covering common high-risk reagents in labs and industries.
Does Deshengxin Reagent Cabinet comply with regulatory requirements for chemical storage?
Yes. It meets industry safety standards: from fireproof structure (double-layer with fire-resistant media) to leak-proof design (>120mm sump) and static grounding, ensuring compliance with laboratory/industrial chemical safety regulations.
What is the ECS (Environmental Control System) function in Deshengxin Cabinet?
ECS precisely monitors and manages environmental parameters (temperature, humidity, air quality, pressure differentials) in the cabinet. It maintains optimal conditions, coordinates with the ventilation/filtration system, and triggers alarms for abnormalities.
What locking mechanisms does Deshengxin Chemical Cabinet have?
It is equipped with GA electronic code locks (with mechanical key backup) for dual authentication—preventing unauthorized access and enhancing the security of hazardous chemical storage.
What is the difference between Deshengxin SS-C049V and SS-C075V models?
SS-C049V is a single-door cabinet (1890×510×510mm), while SS-C075V is a double-door cabinet (1890×900×510mm). Both have 3 leak-proof shelves, GA locks, and static grounding clamps—only differing in door type and width.
Is Deshengxin Reagent Cabinet fireproof?
Yes. It adopts a double-layer fireproof structure filled with fire-resistant media, which effectively isolates high temperatures and prevents fire spread—suitable for storing flammable/explosive chemicals.
Does Deshengxin Cabinet have a leak-proof design?
Yes. The bottom is equipped with a >120mm sand-filled spill containment sump, which can collect leaked chemicals in time to avoid environmental pollution and safety hazards.
What is the material of Deshengxin Chemical Reagent Cabinet?
The shell is made of ≥1.0mm steel with epoxy coating (corrosion-resistant and durable), and the liner is PP material (highly resistant to chemical corrosion, suitable for long-term contact with reagents).
Can Deshengxin Cabinet monitor VOC (Volatile Organic Compounds)?
Yes. It has intelligent control features including VOC monitoring—built-in sensors detect VOC concentrations in real time, and the system triggers automatic alarms if values exceed safety limits.
How many shelves does Deshengxin Reagent Cabinet have?
Both SS-C049V and SS-C075V models are equipped with 3 leak-proof shelves. The shelves can be optional stepped or flat PP types, with reinforced bases for stable load-bearing.
Does Deshengxin Cabinet have a ventilation system?
Yes. It includes a Ventilation and Filtration System with reserved exhaust ports (compliant with industry standards) and uses safe, silent, spark-free anti-static fans—ensuring air circulation and removing toxic/harmful gases.
What is the static grounding clamp used for in Deshengxin Cabinet?
The static grounding clamp (1 pc per cabinet) eliminates static electricity generated during chemical storage/handling, preventing static sparks from igniting flammable/explosive reagents.
What colors are available for Deshengxin Chemical Cabinet?
It offers two color options: yellow and off-white. Yellow is often used for flammable chemical storage (high visibility), while off-white is suitable for general hazardous material storage.
Can Deshengxin Cabinet be moved?
Yes. It is equipped with adjustable leveling feet and heavy-duty casters—casters enable easy movement between locations, and leveling feet fix the cabinet stably after positioning.
What is the touch screen function of Deshengxin Cabinet?
It has a 7-inch touch screen with a safe and stable mainboard—users can intuitively operate functions such as temperature/humidity checking, fan control, alarm settings, and equipment compliance management.
Does Deshengxin Reagent Cabinet have an early warning system?
Yes. The intelligent control system includes an early warning function—alarms are triggered for abnormalities such as excessive temperature/humidity, high VOC levels, door not closed properly, or lock failures.
Is Deshengxin Cabinet suitable for industrial facilities or only laboratories?
It is suitable for both. Its robust structure, large storage capacity (especially SS-C075V), and compliance with industrial safety standards make it ideal for industrial hazardous chemical storage, while its compact design (SS-C049V) fits laboratory spaces.
How to maintain Deshengxin Chemical Reagent Cabinet?
Regularly clean the PP liner and shelves (use neutral cleaning agents), check the sealing performance of the door, test the alarm system and grounding clamp, and replace the filtration system (if applicable) according to usage.
Does Deshengxin Cabinet support customization?
For special needs (e.g., custom dimensions, additional sensors, or specific shelf types), you can contact Deshengxin’s after-sales team—custom solutions are provided to meet unique storage requirements of different scenarios.
What electrical components does Deshengxin Cabinet have, and are they safe?
It includes safe electrical components such as power supplies, buzzers, and grounding devices—all comply with relevant industry safety standards (e.g., anti-static, flame-retardant) to avoid electrical hazards in chemical storage environments.
