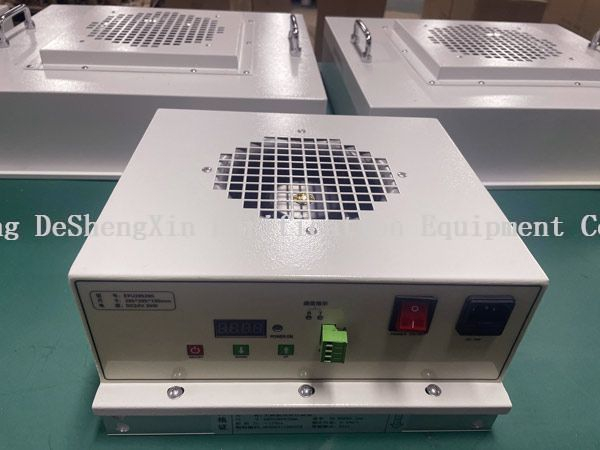

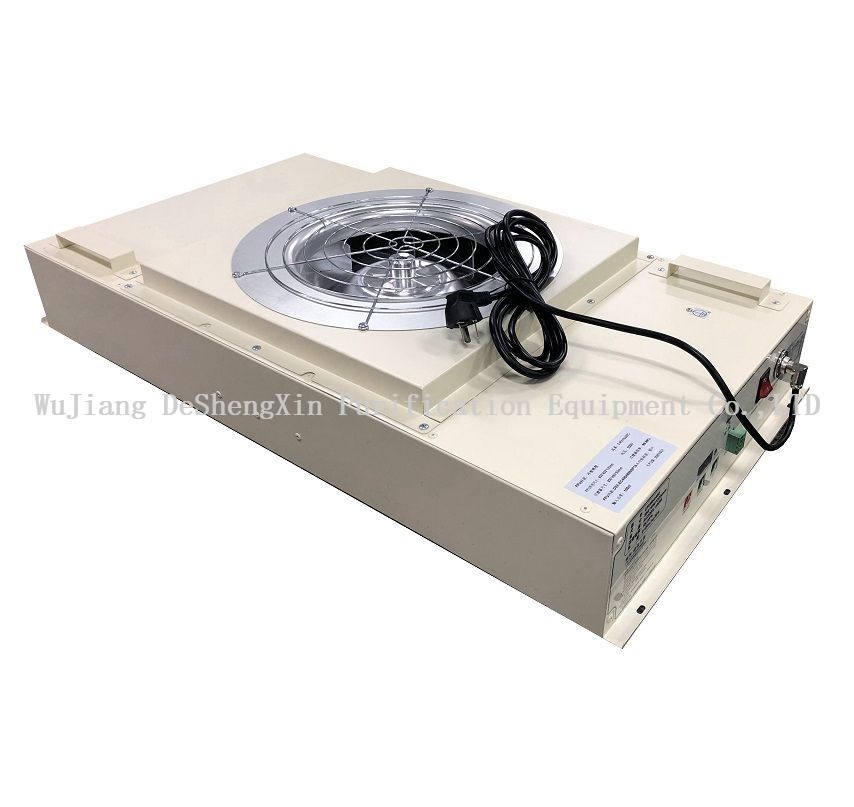

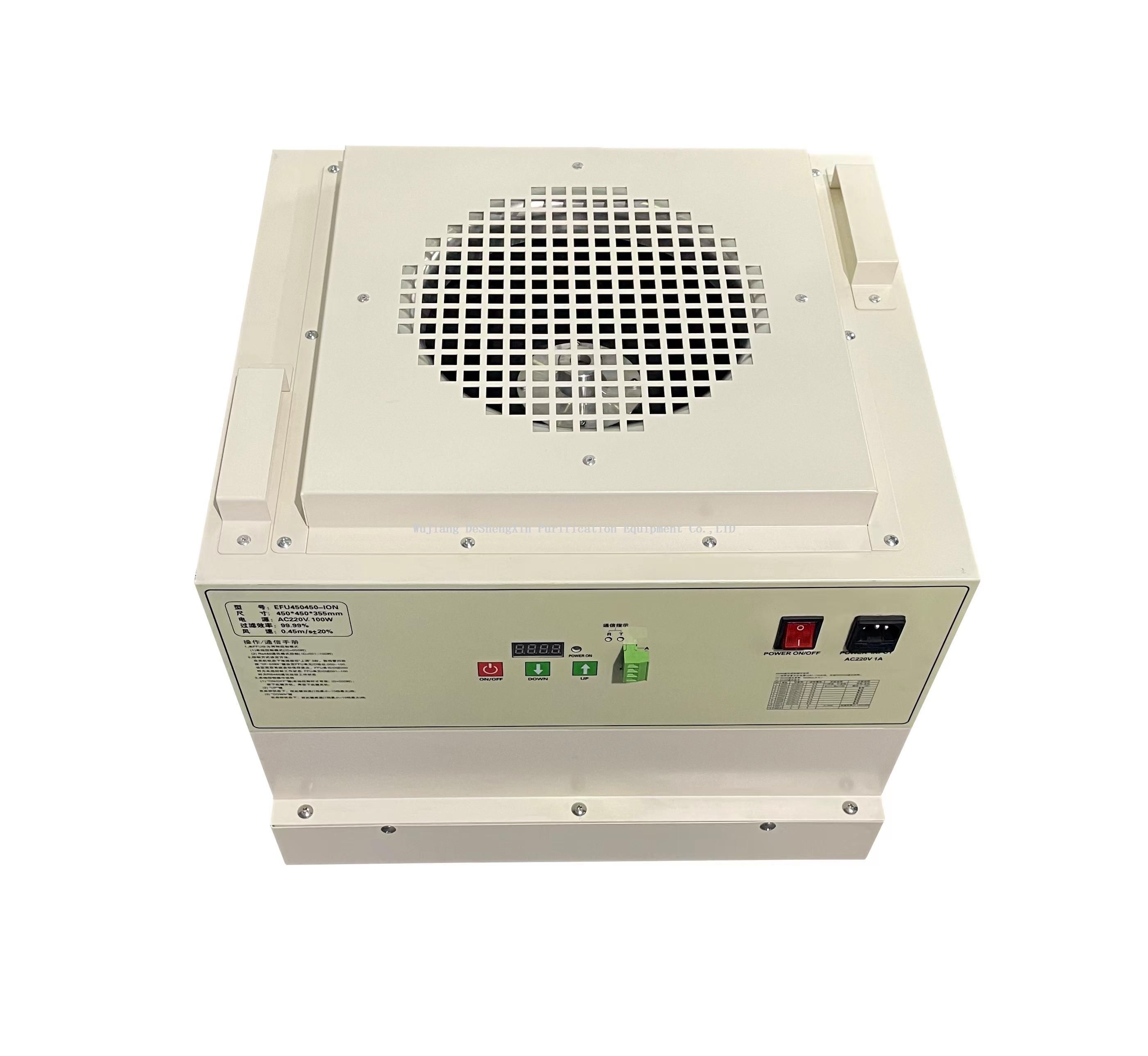

High-Performance EFU/FFU Designed for SMT Pick & Place Machines

A FFU (Fan Filter Unit) is a combination of a fan and a filter, also known as a "filtering device with an integrated fan." When used in cleanrooms, FFUs are typically installed at the air supply end of the cleanroom and are commonly placed on a sealed grid frame system. The FFU is divided into two parts: the upper part contains the fan module, while the lower part houses the high-efficiency filter. Depending on the cleanliness requirements of the cleanroom, the filter can be a high-efficiency (HEPA) or ultra-high efficiency (ULPA) filter, ensuring a supply of clean air to the cleanroom environment.
In addition to overcoming the resistance of the lower high-efficiency filter, the FFU system also needs to overcome the resistance from all components within the airflow path in order to maintain the set operating air velocity. The FFU system offers several advantages, including easy design and construction, flexible air velocity adjustment, and easy modification of the clean zone. Due to these features, FFUs are extensively used in industrial cleanrooms. Experience the benefits of FFU systems in your cleanroom environment to achieve efficient and reliable air filtration.

A FFU (Fan Filter Unit) operates by drawing air (wind) into the internal fan, which then passes the absorbed air (wind) through the HEPA or ULPA filter located underneath the FFU. This filter effectively removes larger particles and dust particles from the air. Finally, the clean air is uniformly supplied to the cleanroom at a wind speed of 0.45m/s ± 10%.
The basic structure of a cleanroom involves the air first passing through the MAU (Make-Up Air Unit), which is equipped with a pre-filter filter. The clean air then enters the top of the cleanroom and proceeds to be further filtered by the FFU, which acts as a secondary filter with a HEPA or ULPA filter. The filtered air is then distributed throughout the cleanroom space. The air that has descended is collected by the raised floor and returns to the air handling unit through the return air plenum, completing the circulation.
By employing the FFU system, cleanroom environments can maintain high levels of air cleanliness, essential for various industries such as electronics manufacturing, pharmaceuticals, and biotechnology. The FFU plays a crucial role in ensuring the delivery of clean air and helping to maintain a controlled and sterile environment.

A Fan Filter Unit (FFU) works by using a combination of a fan and a filter to control and clean the air in a specific area, typically a cleanroom or controlled environment. The main components and working principle of a FFU are as follows：
1. Fan: The FFU contains an internal fan, usually a centrifugal fan, that is responsible for drawing in the surrounding air and creating airflow within the unit. The fan can be dynamically balanced to ensure smooth operation and minimize noise generation.
2. Air Filter: The FFU is equipped with a high-efficiency particulate air (HEPA) or ultra-low particulate air (ULPA) filter. These filters are designed to capture and remove small particles, such as dust, pollen, bacteria, and airborne contaminants, from the incoming air. HEPA filters typically remove particles as small as 0.3 micrometers with an efficiency of 99.99%, while ULPA filters can remove particles as small as 0.12 micrometers with efficiencies up to 99.9999%.
3. Airflow Control: The fan draws air into the FFU, and it passes through the HEPA or ULPA filter, where particles are trapped and retained. The clean, filtered air is then discharged uniformly and evenly from the FFU, creating a laminar airflow pattern. This controlled airflow helps to maintain the desired cleanliness level within the environment.
4. Uniform Distribution: FFUs are designed to supply air at a consistent and uniform velocity. The airflow velocity is typically set at 0.45 m/s (or specified as per requirements) to ensure adequate particle suspension and distribution within the controlled environment. The FFUs are strategically placed in the cleanroom ceiling or walls to achieve optimal airflow coverage.
5. Pressure Control: Some FFUs are equipped with a pressure control system that monitors and maintains the pressure differential between the cleanroom and the surrounding area. This helps prevent contamination from entering the cleanroom by ensuring that air flows from controlled areas to uncontrolled areas.
Overall, the main function of a FFU is to provide a controlled, clean, and sterile airflow within a specific environment. They are widely used in industries like semiconductor manufacturing, pharmaceuticals, biotechnology, and other cleanroom applications where maintaining a clean and particle-free environment is critical.

If you find yourself lacking knowledge about FFU (Fan Filter Unit) products and their suitability for your specific requirements, do not worry! Our company is here to provide you with the perfect FFU solution. Our team of professionals is dedicated to understanding your needs and helping you achieve the desired results. Now, we will delve into the world of FFUs and explain how our expertise can assist you in finding the best fit for your situation.
Understanding FFU Products:
FFUs are vital components in cleanroom environments, providing filtration and airflow control to maintain clean and controlled conditions. These units typically consist of a fan, a motorized impeller, a filter, and other essential components. They play a crucial role in ensuring the cleanliness of the surrounding air by effectively removing particles and contaminants.
Our Commitment to Customer Satisfaction:
At our company, we prioritize customer satisfaction. Our goal is to understand your unique circumstances, specifications, and desired outcomes. Armed with this information, our experienced team members can guide you in selecting the most suitable FFU for your application.
Tailored Recommendations:
To ensure we meet your expectations, it is essential to communicate your actual requirements and the desired outcomes. Whether you require a specific air volume, noise level, or filtration efficiency, our professionals will take all these factors into consideration. We understand the nuances of various industries and cleanroom applications, and we will work closely with you to determine the optimal FFU solution.
Expert Guidance and Support:
Our team consists of highly trained professionals who possess in-depth knowledge about FFUs and cleanroom technologies. When you approach us with your needs, our experts will analyze your situation and offer comprehensive guidance to help you make informed decisions. Whether you require a single FFU or multiple units, we will ensure that the recommended solution aligns perfectly with your expectations.
Beyond Product Selection:
Our support doesn't end with FFU selection. We provide end-to-end assistance, including installation guidance, maintenance recommendations, and troubleshooting support. With our expertise, we aim to establish a lasting partnership that goes beyond the initial purchase, ensuring the smooth operation and longevity of your FFU system.
Conclusion:
When it comes to FFUs, lack of knowledge should not deter you from acquiring the right product for your needs. Our company is dedicated to offering tailored FFU solutions that precisely meet your requirements. By entrusting us with your specifications and desired outcomes, you can rely on our team of professionals to guide you through the selection process. Let us assist you in finding the perfect FFU and become your trusted partner in ensuring the cleanliness and efficiency of your cleanroom environment.

Certainly! We are a vertically integrated manufacturer of fans, filters, and control systems, which means we have complete control over the entire production process. This not only allows us to ensure the quality of our products, but also gives us the flexibility to offer customization options.
When it comes to FFUs (Fan Filter Units), we understand that not every customer's needs can be met by off-the-shelf options. As a fully integrated manufacturer of fans, filters, and control systems, we possess the complete supply chain to deliver customized solutions tailored to your specific requirements. With a deep understanding of product quality and an industry-leading R&D team, we at [company name] offer unparalleled customization capabilities.
Unrivaled Production Capability:
As a full-scale production facility, we control every step of the manufacturing process, ensuring exceptional quality standards while having the adaptability to customize our products. This vertical integration empowers us to modify our fan, filter, and control systems to achieve desired variations in air volume, noise levels, filtering methods, filtration grades, control modes, and related specifications. This, combined with our extensive component inventory, allows us to cater to a wide range of unique demands.
Expertise of Seasoned Engineers:
At Deshengxin, we take pride in our team of experienced engineers who possess not only exceptional technical knowledge but also a deep understanding of the industry. Our engineers work closely with customers to comprehend their specific requirements, ensuring that the final products meet and exceed expectations. With their expertise in various fields, these professionals can provide valuable insights, technical advice, and recommendations throughout the customization process.
Research and Development Capabilities:
Our commitment to innovation and continuous improvement is reflected in our robust R&D efforts. With ongoing investments in research, we stay at the forefront of FFU technology. Our R&D team focuses on developing advanced designs, optimizing performance, and finding new ways to enhance the overall functionality of our products. This allows us to offer cutting-edge solutions that are not only customized but also technologically advanced, ensuring your unique needs are met with the latest industry advancements.
Collaborative Approach:
We adopt a customer-centric approach, emphasizing active collaboration with our clients. Our team of experts will work closely with you, gathering essential information about your requirements, expectations, and constraints. We aim to thoroughly understand your working environment, performance targets, and specific challenges, enabling us to propose the most suitable customizations. Through detailed consultations and iterative feedback sessions, we ensure that the final product not only meets your needs but also exceeds your expectations.
Additional Accessories and Services:
Apart from the core FFU customization, we also offer a variety of additional accessories and services to cater to different application scenarios. These include the option to add UV germicidal lamps for additional sterilization requirements, integrating differential pressure sensors for precise monitoring, and incorporating specialized control systems for seamless integration into existing facility management setups. Our broad range of accessories allows us to create tailor-made solutions that address the unique demands of various industries and applications.
Conclusion:
At Deshengxin, we take pride in our ability to customize FFUs according to the specific requirements of our customers. With a robust R&D team, cutting-edge manufacturing capabilities, and a customer-centric approach, we strive to deliver products that exceed expectations. Whether it's adjustments to fan speed, noise levels, filtration efficiency, control methods, or the addition of complementary accessories, we are fully equipped to accommodate your needs. Embark on a partnership with us, and experience the efficiency and precision of our tailored FFUs for your unique applications.

We have complete control over the entire production process, from sourcing raw materials to manufacturing and final product delivery. This allows us to better control costs and ensure product quality.

1. Advanced Manufacturing Equipment: Our sheet metal processing equipment includes AMADA CNC punching machines, laser cutting machines, CNC bending centers, and laser welders. In comparison, many of our competitors only have basic equipment such as laser cutters, bending machines, and argon arc welders. Our advanced equipment enables higher precision and efficiency in production, resulting in higher quality products.

2. Fan Manufacturing Expertise: We have many years of experience in fan development and production. Unlike most of our competitors who purchase motors and impellers externally, we produce our own motors and impellers. We have a team of experienced motor engineers who can flexibly adapt and adjust parameters to meet customer requirements. Our products undergo rigorous testing and verification in our advanced research and development laboratory prior to mass production. Each fan also undergoes three stages of testing during the production process to ensure product quality. Our fans are known for their low noise, high airflow, stable operation, and long lifespan.

3. Filter Production: We have a dedicated filter production line, while many purification equipment manufacturers even outsource their filters. All our filters are produced in cleanrooms and undergo strict testing to ensure quality.

4. Control Systems: We have our own control system development department and can customize solutions to precisely fit your needs. In contrast, our competitors typically rely on pre-purchased controllers with limited customization options.

5. Full Industry Chain Advantage: As a primary manufacturer, we have control over the entire production process, allowing us to better control costs and ensure product quality. By directly managing the supply chain, we can avoid profit loss from intermediaries and offer more competitive prices.

6. Excellent Quality Control: As the controller of the full industry chain, we can implement strict quality control measures, including material selection, production processes, and quality standards. This ensures that our products meet customer requirements and improves customer satisfaction and trust.

7. Flexible Delivery Times: With over 20,000 square meters of modern industrial plants, we have higher production capacity and resources to better meet customer delivery requirements. We can flexibly adjust production schedules according to customer demands and timelines to ensure timely order fulfillment.

8. Professional R&D Team: We have dedicated R&D teams for motors, fans, control systems, purification equipment, and cleanroom engineering. With our rich R&D experience and technical strengths, we can help customers solve problems throughout the entire industrial chain. We are happy to share our expertise and provide technical services, regardless of whether you purchase our products.

9.Advanced Technological Equipment: We have introduced advanced production and testing equipment from both domestic and international sources, including automated production lines and precision testing instruments. In addition, we have established a wind tunnel laboratory to further enhance our capabilities. With these advanced and specialized equipment, coupled with our professional team, we are able to maintain a high level of quality in both the development of new products and the production process.

10. High-Quality Material Sources: We have established long-term partnerships with reliable suppliers to ensure the quality and stability of our raw materials. We only use high-quality materials to guarantee product durability and performance.

11. Strong Production Capacity: We have the ability to meet customers' large-scale production and efficient delivery demands. We can flexibly adjust production plans based on your order volume to ensure on-time delivery and product quality.

12. Reasonable Pricing Strategy: Our full industry chain production allows us to better control costs, enabling us to provide high-quality products at competitive prices. We optimize costs while ensuring product quality, thereby creating greater value for our customers.

13. Comprehensive Service System: Customer-centricity is at the core of our service approach. We provide all-round support, whether it's pre-sales consultation, communication during the sales process, or after-sales service. We are committed to meeting your individualized requirements and providing customized solutions. Choosing to work with us not only saves you money and gives you peace of mind but also provides strong support from our dedicated team and products.

Certainly!
