DSX F-DE280-ESD EFU Equipment Fan Filter Unit Product Overview

Wujiang Deshengxin independently develops and manufactures the F-DE280-ESD EFU, also known as machine-mounted mini FFU. Our entire control system is self-researched and developed. This unit is specially designed for local internal purification of precision automation equipment. Different from large ceiling FFUs for cleanrooms, this compact EFU fits the narrow installation space inside SMT, semiconductor and microelectronic processing equipment, delivering stable high-clean airflow for core working areas of machines.

Two versions are optional for different production demands: EFU with Anti-Static Ionizer Module for ESD Protection and EFU without Ionizer Module. It provides a steady average face air velocity of 2.0m/s with even air distribution and no dead zones, maintaining a long-term micro clean environment inside equipment.

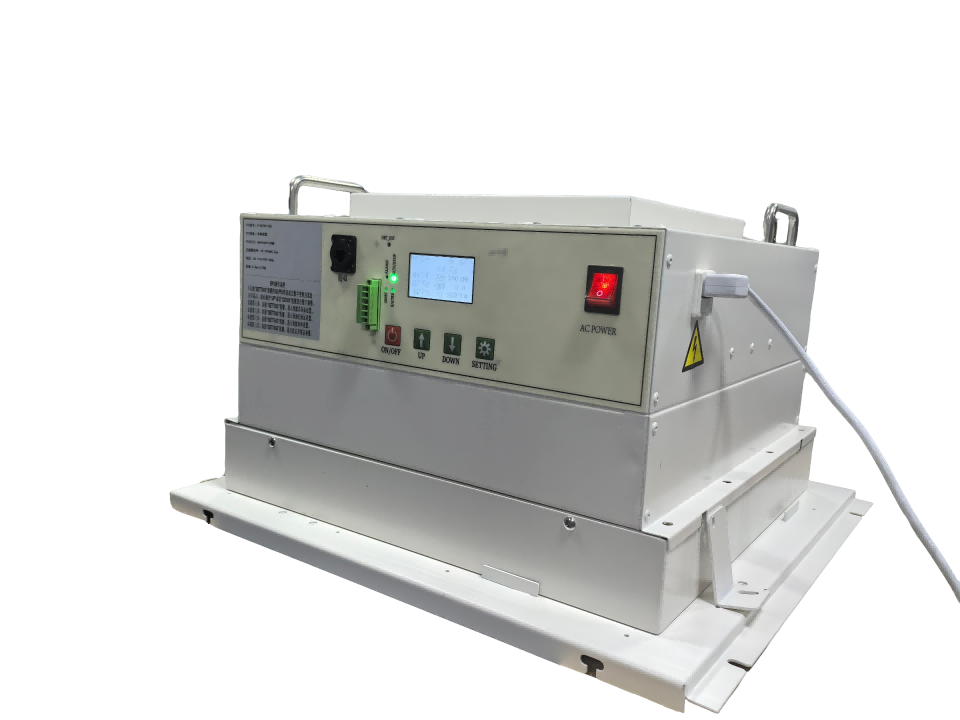

Deshengxin Equipment Fan Filter Unit (EFU) equipped with an additional anti-static ionization module to prevent electrostatic discharge (ESD) in semiconductor and electronics manufacturing

EFU with Anti-Static Ionizer Module for ESD Protection

Standard Deshengxin Equipment Fan Filter Unit (EFU) without the anti-static ionization module, designed for high-uniformity airflow and efficient particle filtration in controlled environments

EFU without Ionizer Module

Basic Model Parameters

Model:	DSX-F-DE280-ESD
Cabinet Material:	Cold rolled steel plate
Overall Dimension:	450450120mm
Power Supply:	110/220V 50Hz
Filtration Efficiency:	99.995% for 0.3μm particles with HEPA filter
Average Face Air Velocity:	2.0 m/s ±20% (Custom wind speed available upon request)
Optional Configuration:	With ion net / Without ion net
Control System:	Self-developed front LCD intelligent control panel

Core Product Advantages

1. Dual Optional Ion Net Versions to Match Various Anti-static Requirements

Two configurations are available to cover all electronic production scenarios:

Version with ion net: Built-in ion static elimination mesh quickly neutralizes static charges in airflow to avoid electrostatic breakdown of chips, wafers and precision components. Ideal for high-sensitivity semiconductor packaging and SMT chip mounting processes.
Standard version without ion net: Cost-effective basic purification solution focusing on high-efficiency dust filtration, suitable for general equipment that only requires dust removal.

2. Stable Uniform 2.0m/s Face Air Velocity, Customizable Wind Speed Supported

Optimized air outlet duct structure ensures a constant average wind speed of 2m/s across the whole filter surface, with uniform airflow free of turbulence and dead zones. It rapidly removes solder dust, tiny particles and suspended pollutants inside enclosed equipment to sustain stable cleanliness standards.

Note: Custom face air velocity can be customized according to customers’ actual equipment purification demands.

3. Built-in LCD Digital Display for Intuitive Equipment Management

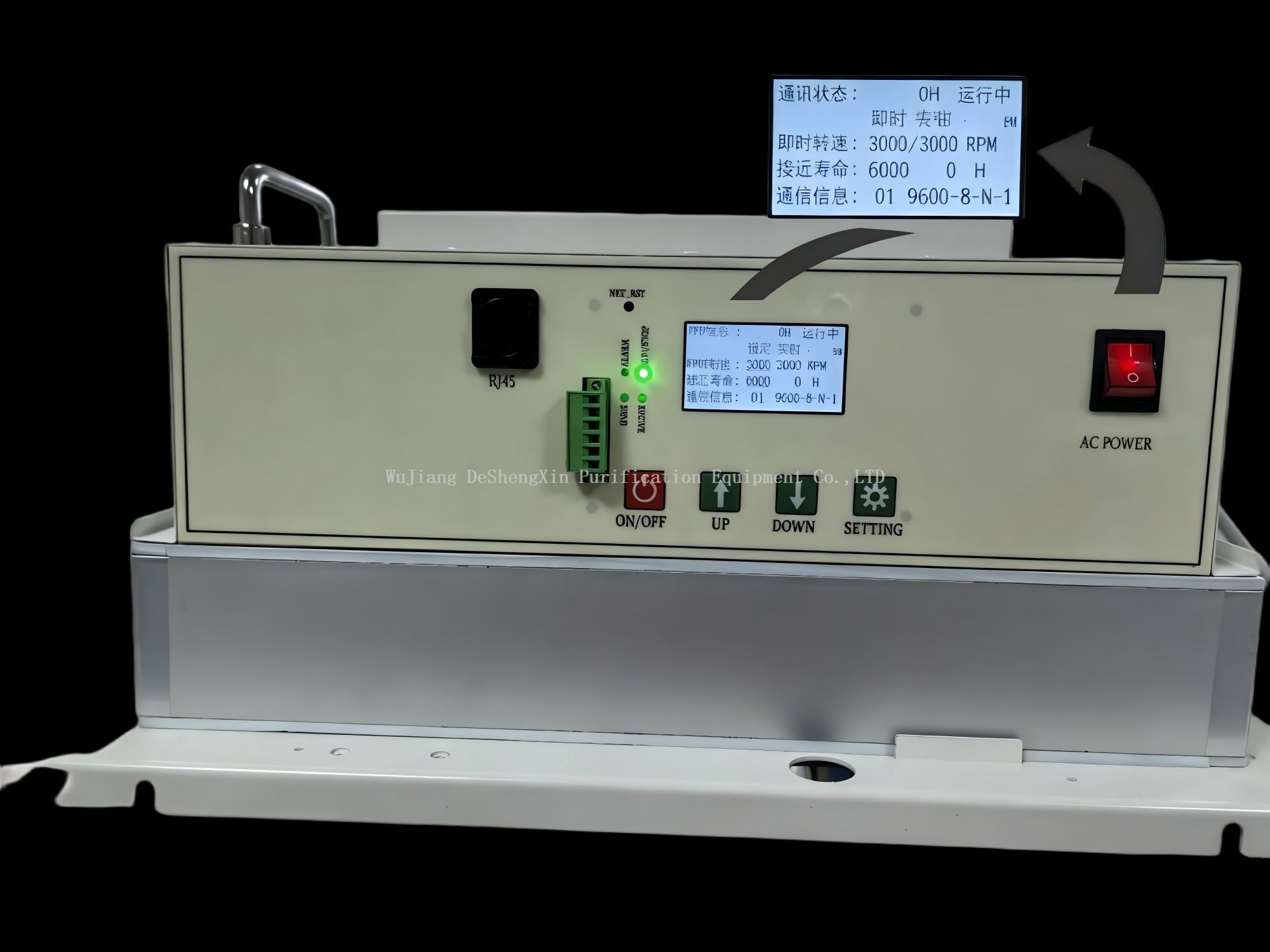

The front-mounted LCD screen displays all operating data in real time without extra testing devices:

Set & real-time fan RPM
Remaining filter service life reminder
Equipment communication address and running status
Fault alarm prompt

Equipped with ON/OFF, UP/DOWN speed and SETTING buttons, it supports fan speed adjustment, filter life reset, communication address configuration, air volume calibration and other parameter settings. On-site staff can complete equipment debugging and daily inspection efficiently to simplify operation and maintenance. The whole control program is independently developed by our team, fully adapted to electronic production line scenarios.

4. Dual Communication Ports for Remote Centralized Control

Standard RJ45 network port and RS485 terminal are equipped, compatible with MODBUS communication protocol. Real-time operating data can be uploaded to the factory central control system. The ALARM indicator instantly feeds back abnormal signals, and the NET_RST reset button speeds up network troubleshooting, enabling unified remote management of multiple EFUs on production lines. Our self-developed control program can connect with all types of production line central control systems.

5. Energy-saving EC Brushless Motor with Stepless Speed Regulation

The fan supports adjustable speed up to 3000 RPM. Stepless speed regulation flexibly meets different cleanliness standards. It features low noise, low power consumption and long service life to cut long-term factory operation costs.

6. High-efficiency HEPA Filtration & ESD Anti-static Body

The HEPA filter achieves 99.995% filtration efficiency for 0.3μm particles, blocking fine dust, solder splashes and suspended workshop pollutants to reach ISO Class 5~6 micro clean standard inside equipment. The whole machine is treated with anti-static coating to prevent static accumulation during air circulation and protect precision electronic components from static damage.

Applicable Industries & Equipment

SMT Production Lines: Solder paste printers, chip mounters, AOI optical detectors, reflow ovens
Semiconductor Precision Equipment: Wafer dicing machines, probe stations, chip packaging molding machines
Microelectronic assembly and optical module testing equipment
Micro lithium battery cell processing equipment

Deshengxin Factory Strength

We are a professional EFU & FFU manufacturer based in Wujiang, Suzhou. We complete full independent R&D, sheet metal processing, motor assembly and filter matching in-house, with all control systems self-developed. We support customized size, voltage, communication protocol, ion net configuration and wind speed for special automation equipment. We supply supporting products, OEM & ODM services and full after-sales technical support for automation equipment manufacturers worldwide.

Send us your equipment drawings and purification requirements to get customized EFU quotations and complete technical datasheets!

EFU Introduction

Versatile EFU Systems with Customizable Materials, Motors, and Controls

Optional ontology materials: steel plate paint, stainless steel 304, 316, 201, 430, aluminum plate
Optional multiple efficient EC/DC/AC motors
Can be controlled individually, can be centrally controlled by computer network, can be remotely monitored
Filters can be made of fiberglass, PTFE, and can be selected with HEPA, ULPA filters of various filtration levels.
"Optimize Automated Equipment Performance with Deshengxin's EFUs"

Deshengxin is a leading expert in the production of EFU (equipment fan filter unit, offering a wide range of specialized solutions tailored to the unique requirements of your automation equipment. Our commitment to precision ensures that our EFUs are of the highest quality, delivering exceptional performance and reliability. With our expertise, we empower your automation machinery to operate at peak efficiency, enabling you to achieve superior results in your operations.
"Streamline Operations with Deshengxin's User-Friendly EFU Equipment Fan Filter Unit"

The Deshengxin EFU (equipment fan filter unit) not only offers outstanding performance but also prioritizes user convenience. It is designed with a user-friendly interface and intuitive controls, enabling effortless operation and adjustment. The unit is equipped with quick-release mechanisms, facilitating easy filter replacement. Its ergonomic design and hassle-free maintenance provide users with a seamless experience.

"Customize Air Filtration with Deshengxin's Versatile EFU Equipment Fan Filter Unit"

Our EFU (Equipment Fan Filter Unit) offers a wide range of filter media options, including fiberglass, PTFE (Polytetrafluoroethylene), and optional HEPA (High-Efficiency Particulate Air) and ULPA (Ultra-Low Penetration Air) filters, ensuring versatility to meet your specific needs. You can choose from different filtration levels such as H13, H14, U15, and U16, guaranteeing the highest level of air quality for your equipment. With these multifunctional filter choices, you can confidently maintain a clean and pure environment for sensitive processes and operations.
Suitable for special occasions

In addition to our standard EFU units for general environments, we have also specifically designed EFU units for automation equipment in the lithium battery industry, such as winding machines and stacking machines. These high-protection EFU units are suitable for environments with high levels of dust.
Assemble in a clean room

To ensure quality, all of our FFU (Fan Filter Unit) and EFU (Equipment Filter Unit) products are manufactured in dust-free rooms. These controlled environments are designed to maintain strict cleanliness standards during production processes. By manufacturing our products in dust-free rooms, we can minimize the risk of contamination and deliver high-quality air filtration solutions to our customers.

EFU Controller Introduction

EC Equipment Filter Unitcontroller

Can be controlled locally on a single machine;
Can be controlled by computer group or upper computer;
Can be controlled by touch screen ( can operate on duty);Capable of monitoring the operating status of FFU, with alarm function and wind pressure monitoring function;
Customize matching control programs based on differentcommunication methods and needs of customers;
The baud rate can be customized according to customerrequirements;
The control program can be displayed in multiple languages;
AC FFU controller

IEnhanced Control Options for Efficient FFU Management and Monitoring
- Local Control: Easily manage FFUs on individual machines for localized control and operation.
- Group Control: Efficiently control and monitor FFUs across multiple machines via computer or upper-level management systems.
- Touchscreen Interface: Seamlessly operate and manage FFUs with
Customizable Equipment Filter Unit Control System: Enhancing Efficiency and Performance

Our Equipment Filter Unit control system is designed and developed by our own engineers, providing exceptional flexibility and customizability. With meticulous attention to detail, our control system offers a wide range of customization options to meet specific customer requirements. Whether it is programming the control interface, adjusting baud rates, or choosing a preferred language for the display, our control system can be personalized to suit different communication methods and customer needs. This level of customization ensures seamless integration with existing systems and enhances the overall efficiency and performance of our EFUs.

Workshop Introduction

FAQs

What is EFU (Equipment Fan Filter Unit)?

The EFU, or Equipment Fan Filter Unit, is a device specifically designed for air filtration and ventilation in equipment applications, particularly in cleanrooms. EFUs are used to maintain the cleanliness and particle-free environment required for sensitive equipment found in industries such as semiconductor manufacturing, biotechnology, pharmaceuticals, and other technology-driven fields.

EFUs are typically installed on or near the equipment itself, rather than on the cleanroom ceiling like traditional FFUs (Fan Filter Units). They are designed to be compact, easily attached to the equipment, and provide localized air filtration and circulation.

The EFU consists of a fan and a filter section. The fan helps to create airflow, which draws in ambient air from the surrounding environment and passes it through the filter section. The filter section is responsible for removing particles, pollutants, and contaminants from the incoming air, ensuring that only clean, filtered air is delivered to the equipment.

The filters used in EFUs are high-efficiency filters, such as HEPA (High-Efficiency Particulate Air) or ULPA (Ultra-Low Penetration Air) filters. These filters are capable of capturing particles as small as 0.3 micrometers with high efficiency, ensuring the desired level of cleanliness is maintained.

EFUs are also equipped with control systems that allow for variable airflow and fan speed adjustments, enabling precise control of air quality and flow rates to meet the specific requirements of the equipment being served.

Deshengxin EFU plays a crucial role in maintaining the cleanliness and performance of sensitive equipment in cleanroom environments, ensuring the production of high-quality products and minimizing the risk of contamination.
What is the difference between EFU (Equipment Fan Filter Unit) and FFU (Fan Filter Unit)?

The EFU (Equipment Fan Filter Unit) is a device used in cleanrooms and is similar to the commonly seen FFU (Fan Filter Unit), but there are some differences between the two.

The EFU is specifically designed for equipment application, such as photolithography machines, stockers, indexers, coaters, and cleaning machines, while the FFU is generally used in cleanrooms and installed on the ceiling.

In terms of installation, FFUs are standalone devices typically installed horizontally on the ceiling with the help of gravity and sealing installation with filters and ceiling grids. On the other hand, EFUs have a more complex installation process. The EFU box and filter are usually fixed together with bolts and nuts, and the EFU unit is then securely fixed to the equipment using dedicated mounting brackets and bolts.

Furthermore, EFUs have different specifications, material requirements, maintenance methods, control systems, and operating parameters compared to FFUs. The thickness, dimensions, and material requirements of EFUs are specifically designed to meet the requirements of equipment applications. The maintenance methods may also vary, depending on the specific design and configuration of the EFU. The control systems used in EFUs may differ from the ones used in FFUs, and the operating parameters such as airflow and pressure may also be specifically tailored for equipment needs.

Overall, the EFU and FFU have different applications, installation methods, specifications, and operating parameters, highlighting their distinctive features and functionality in different cleanroom environments.
What is the working principle of EFU (Equipment Fan Filter Unit)?

The working principle of the EFU (Equipment Fan Filter Unit) involves the following steps:

1. Air intake: The EFU is designed to draw in ambient air from the surrounding environment. It may have an intake grille or ducts for air intake.

2. Fan operation: The EFU is equipped with a fan that helps create airflow. The fan generates suction or positive pressure, depending on the specific application, to draw or push air through the unit.

3. Air filtration: The incoming air passes through the filter section of the EFU. This section usually contains high-efficiency filters like HEPA (High-Efficiency Particulate Air) or ULPA (Ultra-Low Penetration Air) filters. These filters are designed to capture very small particles, typically 0.3 micrometers in size or smaller, with high efficiency.

4. Particle removal: As the air flows through the filter section, the filters trap and remove particles, pollutants, and contaminants present in the air. These may include dust, bacteria, viruses, pollen, and other airborne particles.

5. Clean air delivery: The cleaned and filtered air is then delivered to the equipment being served. The EFU ensures that only clean, particle-free air reaches the equipment, helping maintain a controlled and clean environment around the equipment.

6. Variable airflow control: EFUs often come equipped with control systems that allow for variable airflow and fan speed adjustments. This enables precise control of air quality and flow rates to meet the specific requirements of the equipment being served.

Overall, the working principle of the EFU revolves around drawing in ambient air, filtering it through high-efficiency filters, and delivering clean air to the equipment in order to maintain a clean and controlled environment for sensitive equipment applications.
