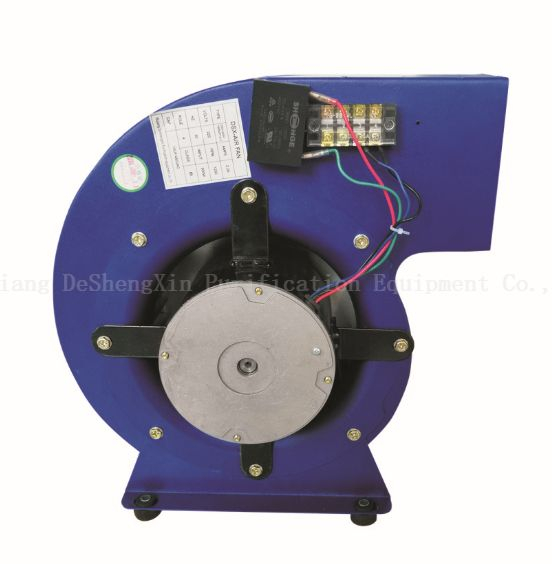

DSX-240-2A Centrifugal Fan

The DSX-240-2A Centrifugal Fan, a masterpiece from trusted manufacturer DSX, brings together advanced design, exceptional durability, and cost-effective pricing. Perfect for a wide range of industrial and commercial ventilation needs, it delivers smooth airflow, low noise, and maximum energy efficiency. Upgrade your ventilation today with this smart and reliable fan.

Quantity:
Availability:





Inquire Add to Basket

Model:
DSX-240-2A Centrifugal Fan
Brand:
DSX
Size:
OEM, ODM
Customized support:
OEM, ODM
Certification:
CCC/CE/ISO9001

Centrifugal fan centrifugal fan design centrifugal fan price Air Blower Fan air blower motor Centrifugal blowers centrifugal blower fan Low Noise Centrifugal Fans centrifugal fan manufacturers centrifugal fan factory

Product introduction

Workshop Introduction

FAQs

Introducing the DSX-240-2A Centrifugal Fan: A Synergy of Innovative Design, Durability, and Affordability

The DSX-240-2A Centrifugal Fan from Centrifugal Fan manufacturer DSX is a testament to excellence in centrifugal fan technology. Designed with meticulous attention to detail, this fan embodies the perfect fusion of advanced design, robust construction, and cost-effective pricing, catering to the diverse needs of industrial and commercial applications.

Centrifugal Fan Design:

Crafted with precision and innovation at its core, the DSX-240-2A boasts a cutting-edge design that optimizes airflow and energy efficiency. Its aerodynamic fan blades and optimized housing minimize turbulence and ensure smooth, efficient air movement, reducing energy consumption and noise levels.

Durability and Reliability:

Built to withstand the toughest environments, the DSX-240-2A features premium materials and robust components that guarantee longevity and reliability. Its sturdy construction ensures continuous operation with minimal maintenance, reducing downtime and maximizing productivity.

Manufacturer's Expertise:

As a leading centrifugal fan manufacturer, we pride ourselves on delivering products that meet the highest standards of quality and performance. The DSX-240-2A is no exception, benefiting from our years of experience and expertise in fan design and manufacturing.

Affordable Pricing:

Despite its superior quality and advanced features, the DSX-240-2A is competitively priced to fit within the budgets of businesses of all sizes. We understand the importance of cost-effective solutions and strive to provide our customers with the best value for their money.

Ideal for a Range of Applications:

Whether you're looking to enhance air circulation, cool down industrial equipment, or manage dust and fume extraction, the DSX-240-2A is the perfect solution. Its versatile design makes it suitable for a wide array of applications, ensuring optimal air quality and a comfortable working environment.

Upgrade your ventilation system with the DSX-240-2A Centrifugal Fan – the smart choice for businesses seeking innovative design, durability, and affordability. Contact us today to learn more about this exceptional product and how it can benefit your operation.

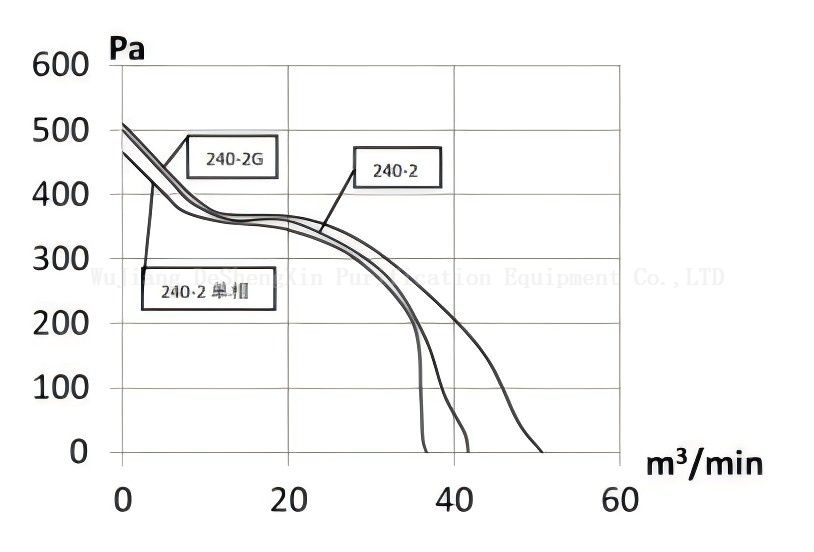

Airflow versus pressure curve

Airflow Static Pressure Curve Diagram DSX-240-2A

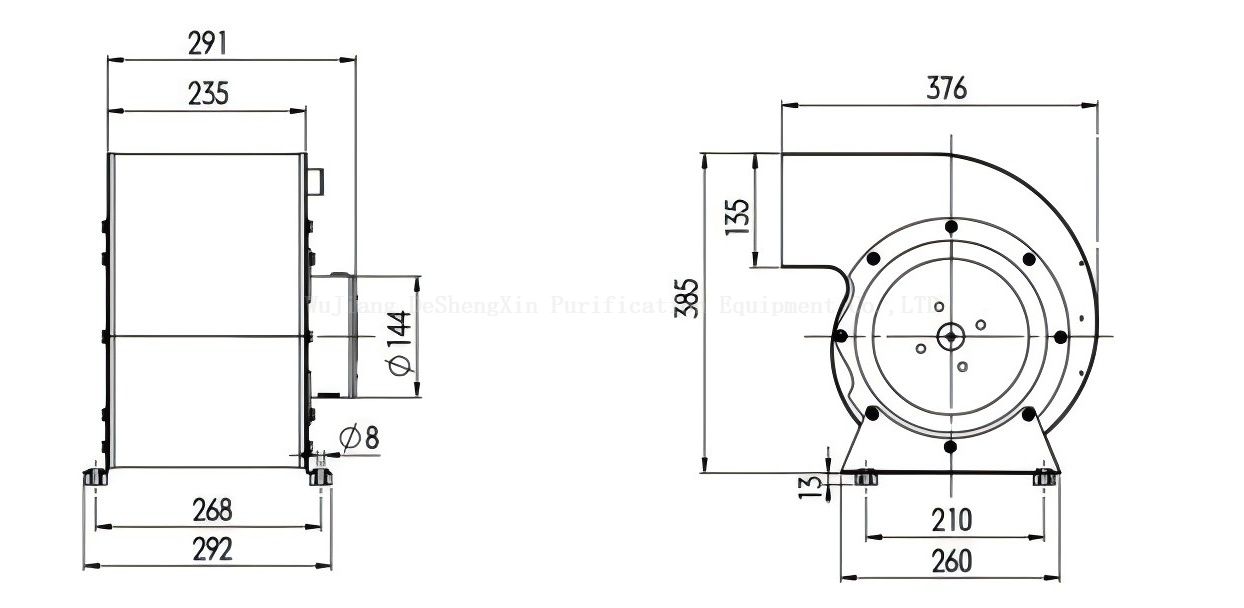

Appearance and installation dimensions

Outline and installation dimension drawing DSX-240-2A

Parameters

Model Abbreviation	Model Number	Voltage (V)	Volume（m³/h）	Total Pressure（Pa)	Frequency（Hz）	Power (W)	capacitance (uf)	Speed(r/min)
DSX-240-2GA 4P	DSX-240-2GA 4P/DSX-240H190N4P3A-2GA	380	3000	510	50	800		1400
DSX-240-2A 4P	DSX-240-2A 4P/DSX-240H190N4P3A-2A	380	2500	500	50	800		1250
DSX-240-2A	DSX-240-2A/DSX-240H190N4P1A-2A	220	2200	470	50	500	10	1250

The following are the specifications for Deshengxin's regular Scroll Centrifugal Fans, which are customizable to meet your needs.

Model Abbreviation	Model Number	Voltage (V)	Volume（m³/h）	Total Pressure（Pa)	Frequency（Hz）	Power (W)	capacitance (uf)	Speed(r/min)
DSX-155	DSX-155/DSX-155H176N4P1A-2	220	600	140	50	60	1.5	1300/650/350
DSX-160	DSX-160/DSX-160H80N2P3A-1	380/220	1000	950	50	370	/	2800
DSX-160	DSX-160/DSX-160H80N2P1A-1	220	1000	950	50	370	5	2800
DSX-160H	DSX-160H/DSX-160H80N2P3A-2	380	1900	800	50	800	/	2800
DSX-DF-5	DSX-DF-5/DSX-206H55N2P3A-1	380	1120	1050	50	550	/	2800
DSX-DF-7	DSX-DF-7/DSX-206H80N2P3A-1	380	1500	1130	50	750	/	2800
DSX-195 2P	DSX-1952P/DSX-195H60N2P3A-1	380/220	1200	1000	50	550	16	2800
DSX-1952/4P	DSX-1952/4P/DSX-195H60N2/4P3A-1	380	1200/600	1000/250	50	550/140	/	2800
DSX-195NAM	DSX-195NAM/DSX-195H60N2P3A-1NAM	380	1150	970	50	550	/	2700
DSX-195	DSX-195/DSX-195H60N2P1A-1	220	1200	1000	50	550	16	2800
DSX-195-2	DSX-195-2/DSX-195H120N4P1A-2	220	660	340	50	270	4	1250
DSX-2002P	DSX-2002P/DSX-200H100N2P3A-1	380/220	1500	1200	50	600	/	2800
DSX-2002/4P	DSX-2002/4P/DSX-200H100N2/4P3A-1	380	1500/600	1200/300	50	600/140	/	2800
DSX-200NAM	DSX-200NAM/DSX-200H100N2P3A-1NAM	380	1350	1180	50	600	/	2700
DSX-200	DSX-200/DSX-200H100N2P1A-1	220	1500	1200	50	600	16	2800
DSX-2402P	DSX-2402P/DSX-240H95N2P3A-1	380/220	2500	1500	50	750	/	2800
DSX-2402/4P	DSX-2402/4P/DSX-240H95N2/4P3A-1	380	2500/1250	1500/375	50	750/140	/	2800
DSX-240NAM	DSX-240NAM/DSX-240H95N2P3A-1NAM	380	2300	1400	50	750	/	2700
DSX-240	DSX-240/DSX-240H95N2P1A-1	220	2500	1500	50	750	24	2800
DSX-240-2G 4P	DSX-240-2G 4P/DSX-240H190N4P3A-2G	380	3000	510	50	800		1400
DSX-240-2 4P	DSX-240-2 4P/DSX-240H190N4P3A-2	380	2500	500	50	500		1250
DSX-240-2	DSX-240-2/DSX-240H190N4P1A-2	220	2200	470	50	500	10	1250
DSX-240-2GA 4P	DSX-240-2GA 4P/DSX-240H190N4P3A-2GA	380	3000	510	50	800		1400
DSX-240-2A 4P	DSX-240-2A 4P/DSX-240H190N4P3A-2A	380	2500	500	50	800		1250
DSX-240-2A	DSX-240-2A/DSX-240H190N4P1A-2A	220	2200	470	50	500	10	1250
DSX-245Y	DSX-245Y/DSX-245H100N2P1A-1	220	3000	820	50	1100	24	2800
DSX-245-4Y	DSX-245-4Y/DSX-245H100N4P1A-1	220	1500	210	50	750	16	1400

The following are the specifications of Deshengxin's regular DC Scroll Centrifugal Fans, customizable in large quantities.

Model Abbreviation	Model Number	Voltage (V)	Volume（m³/h）	Total Pressure（Pa)	Frequency（Hz）	Power (W)	Speed(r/min)	Controller	Speed regulation mode
EC143	DSX-EC143H103N8P1A-1	220	1000	280	50	75	1958	YJ-19A	Stepless Speed Control
EC145	DSX-EC145H60N8P1A-1	220	750	550	50	100	2800	CR-28	Stepless Speed Control
EC155	DSX-EC155H176N8P1A-2	220	600	140	50	60	1300	KJ-13	Stepless Speed Control
EC190	DSX-EC190H86N8P1A-2	220	1000	390	50	90	1640	XF-19-40S	PWM
EC190-A	DSX-EC190H86N8P1A-2A	220	900	260	50	80	1570	XF-19-30S	PWM
EC190-B	DSX-EC190H86N8P1A-2B	220	600	140	50	35	1200	XF-12-20S	PWM
EC195-2	DSX-EC195H136N8P1A-2	220	600	340	50	110	1100	XF-11-60S	Stepless Speed Control
EC200	DSX-EC200H100N8P3A-1	220	1500	1000	50	600	2800	FL-28	Stepless Speed Control
EC239	DSX-EC239H94N8P3A-1	220	3200	2500	50	2500	3300	CR-33	Stepless Speed Control
EC240	DSX-EC240H95N8P3A-1	380	2500	1200	50	1000	2600	FL-26	Stepless Speed Control
EC280	DSX-EC280H100N8P1A-1	220	1500	550	50	160	1380	YJ-20	Stepless Speed Control

Workshop Introduction

Air purifier production workshop

Air purifier production workshop is a dedicated facility where air purifiers are manufactured, assembled, and tested. This workshop is equipped with specialized machinery, tools, and skilled workers who follow strict quality control standards to ensure the production of high-quality air purifiers. From sourcing the raw materials to the final packaging, every step of the manufacturing process is meticulously carried out in the air purifier production workshop to create products that effectively remove contaminants and improve indoor air quality. With a focus on efficiency and precision, the workshop plays a crucial role in delivering reliable and innovative air purifiers to meet the needs of various environments
View More
Steel door production workshop
View More
Special filter production workshop
View More
W-type filter production workshop
Special filter production workshop
View More
Air valve production workshop

DSX chemical filters Production workshop
DSX chemical filters Production workshop
DSX chemical filters Production workshop
Product test
Product testing
View More
Product test
Specialized in product

This is a default placeholder description to help you get started with your content. Feel free to modify this text and replace it with your own unique and compelling copy that will captivate your audience.
Warehouse
Shipment

Welcome to our FAQ page about centrifugal fans. If you have questions about centrifugal fans and how they work, you've come to the right place. Below, we have compiled a list of common questions and detailed answers to help you better understand these powerful ventilation tools.

Common Questions:

Question 1: What is a centrifugal fan?

Answer 1: A centrifugal fan is a mechanical device used for moving air or other gases. It consists of an impeller (a rotating component) and a housing. When the impeller rotates, it creates airflow by drawing air into the fan and then pushing it out at a high velocity. Centrifugal fans are commonly used in HVAC systems, industrial processes, and ventilation systems.

Question 2: How does a centrifugal fan differ from other types of fans?

Answer 2: Unlike axial fans, which move air in a straight line, centrifugal fans use centrifugal force to propel air radially outward. This design allows centrifugal fans to generate higher pressures and airflow rates compared to axial fans. Additionally, centrifugal fans are more efficient at handling dust, dirt, and other particulates in the air.

Question 3: What are the different types of centrifugal fans?

Answer 3: There are several types of centrifugal fans, including forward-curved, backward-curved, and Deshengxin fans. Each type has its own unique characteristics and is suitable for specific applications. Forward-curved fans are ideal for low-pressure systems, while backward-curved fans are better suited for high-pressure systems. Deshengxin fans offer a balance between pressure and airflow.

Question 4: How do I choose the right centrifugal fan for my application?

Answer 4: When selecting a centrifugal fan, consider factors such as airflow requirements, static pressure, noise levels, efficiency, and space constraints. It's important to consult with a ventilation expert to determine the best fan for your specific needs. Additionally, make sure to properly size and install the fan to ensure optimal performance.

Question 5: How can I maintain a centrifugal fan for optimal performance?

Answer 5: Regular maintenance is essential to keep a centrifugal fan running smoothly. This includes cleaning the fan blades, checking for any obstructions or damage, lubricating moving parts, and inspecting the motor and bearings. It's also important to monitor the fan's performance and address any issues promptly to prevent costly repairs.
